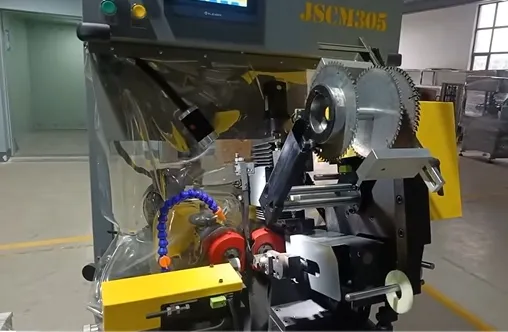

Saw Blade Grinding Machine, Mechanical Arm Double-Sided Saw Grinder

US$9,800.00
1-2 Sets
US$9,400.00
3+ Sets

Basic Info.

Model NO.
JSCM305
Type
Special Purpose Grinding Machine
Processing Object
Gear
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Saw
Precision
High Precision
Condition
New
Blade Diameter
Ø110~Ø305mm
Range of Tooth Pitch
7~48mm
Front Angle
0°~25°
Grinding Wheel Specifications
Ø100mm
Grinding Wheel Stroke
0~28mm
Grinding Wheel Speed
5600r/Min
Working Air Pressure
≥0.45MPa
Supply Voltage
AC380V50Hz
Power
2.5kw
Weight
930kg
Transport Package
Wooden Crate
Specification
1440× 860× 1770mm
Trademark
Lutai
Origin
China
Production Capacity
30 Set/Year

Packaging & Delivery

Package Size
148.00cm * 90.00cm * 182.00cm
Package Gross Weight
950.000kg

Product Description

Machine features
1.This machine is a specialized automated equipment for double-sided grinding of alloy circular saw blades.
2.The bottom of the grinding body adopts an integrated reinforced casting bottom plate, which has good stability.
3.The use of manipulator up and down saw blade, simple and convenient operation, one person can operate multiple equipment.
4.The adjustment of the feed and retreat knives is convenient, and the combination mode of feed and retreat knives during the grinding wheel stroke process can be set arbitrarily.
5.The motor teeth are precise and stable.
6.The grinding wheel has an automatic compensation function, and the grinding wheel wear is automatically compensated.
Technical parameter
Blade Diameter Ø110~Ø305 mm
Range of tooth pitch 7~48 mm
Front angle 0°~25° °
Grinding wheel specifications Ø100×Ø20 mm
Grinding wheel stroke 0~28 mm
Grinding wheel speed 5600 r/min
Working air pressure ≥0.45 MPa
Supply voltage AC380V50Hz V
Power 2.5 KW
Weight 930 Kg
Machine tool dimensions 1440×860×1770 mm
