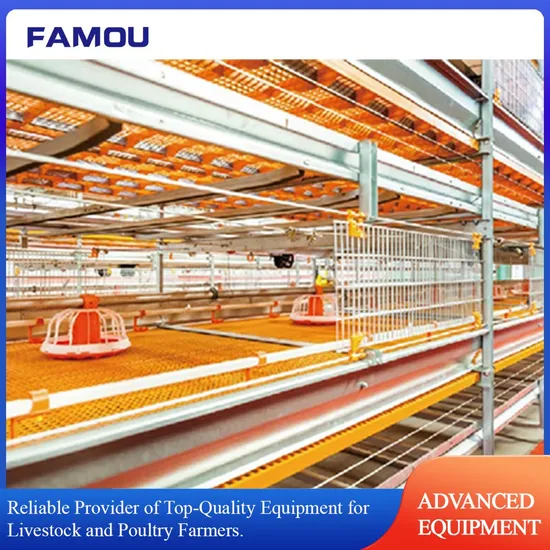

Automatic Poultry Equipment Steel H-Type Broiler Cage System with Ventilation Fan Technology

Product Description

Experience unparalleled excellence with Qingdao Famou Machinery Co., Ltd.'s Automatic Poultry Equipment Steel H-Type Broiler Cage System. Engineered with an advanced trough feeding mechanism, this system is meticulously tailored to revolutionize broiler chicken farming.
Crafted from premium hot-dip galvanized material, our feeding trough stands as a testament to strength and longevity, outclassing traditional PVC alternatives with its superior durability and performance.The trough's pioneering V-shaped design harmonizes with the natural eating habits of the birds, ensuring uniform feed distribution. This innovative design minimizes mold risk, guarantees fresh feed consistently, and significantly reduces feed wastage.
Below are the precise dimensions of our cutting-edge 4-tier H frame broiler cage system (a 3-tier configuration is also available for your convenience):

products name	4 tier H type chicken broiler cage
Material	galvanized wire	Tiers	4 Tiers
one unit size	1200mm×1723mm×2655mm (L×W×H)	unit capacity	136 birds
one cell size	1200mm×700mm×460mm (L×W×H)	cell capacity	17 birds per cell
life span	20 years	living space/bird	494 cm²

Dimensions for the 3-tier system are as follows:
Unit Dimensions (mm):
1206x1400x2070
Cell Dimensions (mm):
1206x700x460
Bird Capacity Per Cell: Designed to accommodate up to 17 birds
Bird Weight Capacity: Built to support birds weighing up to 2.5 kg each
Our Advantages
1) The cage frame is meticulously crafted using CNC-machined hot-dip galvanized plates. It guarantees superior structural stability, eliminating any issues of manure belt misalignment.
2) The robust C-shaped legs, constructed from hot-dip galvanized sheets, offer unmatched sturdiness and ease of cleaning. The ample 1206mm spacing between legs ensures a rock-solid frame.
3) User-friendly push-in doors and push-down bird-block boards make bird harvesting a breeze.
4) Our hot-dip galvanized feeding trough vastly surpasses PVC variants in durability,and is ingeniously designed to be cart-compatible, streamlining feed distribution.
5) The scraper, featuring a stainless steel frame, ensures a perfect fit against the belt, optimizing cleaning efficiency.
The easily removable PVC scraper makes the cleaning process even more straightforward.
With one scraper at the manure belt end and two secondary scrapers below the return belt, our system ensures thorough and efficient manure removal.
Qingdao Famou Machinery Co., Ltd. is your ultimate one-stop destination for cutting-edge livestock and poultry breeding equipment, offering unmatched innovation and reliability.
Our Comprehensive Fully Integrated Cage System includes:
1) Cage and frame2) Fully automated drinking system3) Fully automated feeding system4) Fully automated manure removal system5) Fully automated lighting system6) Fully automated environment and electric control system
