Oil Press Screw, Plastic Mechanical Screw, Special CNC Screw Milling Machine

Product Description

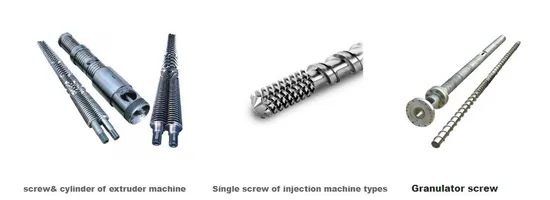

screw& cylinder of extruder machine Single screw of injection machine types Granulator screw
LXK350C CNC SCREW milling machine is the leading variety in the series of screw machining machine tools developed by our company. The product is specially designed for processing all kinds of special-shaped screw, such as equal lead, variable lead, gradual lead, equal slot depth, variable slot depth and so on.
LXK350C type CNC screw milling machine has the following characteristics:
1, the overall bed design, three guide rail arrangement, guide surface high-frequency quenching, good rigidity, high precision.
2, the milling head adopts frequency conversion motor, can make the milling cutter to achieve stepless speed change, speed range is wide. The milling head can adjust the Angle manually according to the requirements of the workpiece. Milling head can be manually up and down.
3, X axis and Z axis reciprocating movement is realized by ball screw, high precision of repeated positioning.
4, C shaft transmission for worm gear and worm structure, smooth transmission, accurate indexing.
5. The sliding saddle is a dovetail guide rail with high position accuracy and good fast moving speed.
6, the spindle bearing is lubricated with oil, low temperature rise, high durability, and no daily lubrication maintenance.
7. The tail seat of the machine is mechanical, flexible and reliable.
8, machine tool configuration wide number control system.
9. The machine is equipped with a chip removal machine. The iron chips generated in the milling process directly enter the chip removal machine to ensure the clean working environment.
10. The electrical components in the machine tool electrical control cabinet are all made of Delisi brand.

project	details	units
Bed width	780	mm
The length of the lathe bed	4700	mm
Bed guide rail	The four guide
Maximum workpiece length	3000	mm
Maximum machining length	2800	mm
Maximum milling diameter	Φ 300	mm
Milling head motor power	7.5 (frequency)	Kw
Milling cutter speed rating	400	r/min
Spindle mounting taper of milling head	"(69.85) Φ
C-axis servo motor torque	38	N.m
C shaft speed	0 to 25	r/min
X axis servo motor torque	15	N.m
X axis ball screw specifications	4005
Z-axis servo motor torque	18	N.m
Z axis ball screw specifications	6310
Diameter of tail seat sleeve	130	mm
Mounting taper of tail seat sleeve	Morse # 6
Maximum sleeve stroke	100	mm
Machine tool dimensions	(5200 + 1500) *1800* 1700	mm
Machine weight	Material 7.0	Tons

The machine adopts traditional manual scraping, making the machine more efficient and accurate
Vigorously milling, feed depth, a knife to complete processing
Q1,If you don't know which model is suitable for your company, please tell us your requirements for the equipment, or you can send us the product drawings, and our engineers can help you choose the most suitable model for you.
Q2, How do I send my query?
You can contact us via email, phone, instant messaging (WhatsApp, wechat, Skype).
Q3,delivery time
The project will be completed within 20 days after receiving the deposit. Please communicate with the sales staff about the specific construction period.
Q4,Payment Terms
30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.Welcome to inquiry sales.
Q5,Can your engineers come to help us install and debug the machine?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
Q6, If I can't know how to operate. Can your engineer help me programme well on machine?
Sure. You can provide your detailed sample drawing.engineer can programme well on machine. Or in some machines, we will put into U-disc of operation video to help you.
Q7,Is there only one model of this device?
The standard processing diameter range of this equipment is 350mm, if you have other processing range, you can negotiate with the sales contact. Length range, we can do from 1000mm to 8000mm, and all are integral cast bed.
Q8, processing efficiency
Our CNC machine tool from the lathe bed casting weight, wide guide rail, large motor power, can use a maximum diameter of 50 round rod milling cutter processing, the maximum cutting depth can reach 40mm, so the processing efficiency is very high.
Q9,What control system does the equipment use
Our standard configuration is Guangzhou CNC system, fanuc and Siemens can also be used, but the price is slightly different, please contact sales for details.

---
