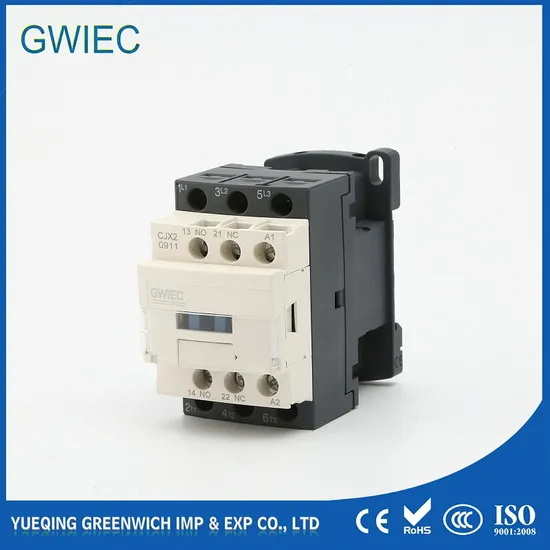

Tp 1no+1nc LC1-D Series Sliver Contact AC Contactor Ui 690V with CE

Product Description

Application: lC1-D series AC Contactor is suitable for using in the circuits up to the rated voltage 660VAC 50Hz or 60Hz, rated current up to 620A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter.With the thermal relay, it is combined into the electromagnetic starter. The product conforms to IEC60947-4-1 standard.
Specification:

Type	LC1
		D09	D12	D18	D25	D32
Rated working current (A)	AC3	9	12	18	25	32
	AC4	3.5	5	7.7	8.5	12
Standard power ratings of 3-phase motors 50/60Hz in category AC-3	220/230V	2.2	3	4	5.5	7.5
	380/400V	4	5.5	7.5	11	15
	415V	4	5.5	9	11	15
	500V	5.5	7.5	10	15	18.5
	660/690V	5.5	7.5	10	15	18.5
Rated heat current (A)		20	20	32	40	50
Electrical life	AC3(x104)	100	100	100	100	800
	AC4(x104)	20	20	20	20	20
Mechanical life (x104)4		1000	1000	1000	20	800
Number of the contacts		3P+NO+NC
Type	LC1
		D40	D50	D65	D80	D95
Rated working current (A)	AC3	40	50	65	80	95
	AC4	18.5	24	28	37	44
Standard power ratings of 3-phase motors 50/60Hz in category AC-3	220/230V	11	15	18.5	22	25
	380/400V	18.5	22	30	37	45
	415V	22	25	37	45	45
	500V	22	30	37	55	55
	660/690V	30	33	37	45	55
Rated heat current (A)		60	80	80	125	125
Electrical life	AC3(x104)	80	60	60	60	60
	AC4(x104)	15	15	15	10	10
Mechanical life (x104)4		800	800	800	600	600
Number of the contacts		3P+NC+NO

Standard Control Circuit Voltage:

Volts

24

42

48

110

220

230

240

380

400

415

440

500

600

50Hz

B5

D5

E5

F5

M5

P5

U5

Q5

V5

N5

R5

S5

Y5

60Hz

B6

D6

E6

F6

M6

-

U6

Q6

-

-

R6

-

-

50/60Hz

B7

D7

E7

F7

M7

P7

U7

Q7

V7

N7

R7

-

-

Outline and mounting dimension:

Type	A	B	C	D	E	a	b	φ
LC1-D09--12	47	76	82	113	133	34/35	50/60	4.5
LC1-D18	47	76	87	118	138	34/35	50/60	4.5
LC1-D25	57	86	95	126	146	40	48	4.5
LC1-D32	57	86	100	131	151	40	48	4.5
LC1-D40--65	77	129	116	145	165	40	100/110	6.5
LC1-D80--95	87	129	127	175	195	40	100/110	6.

---
