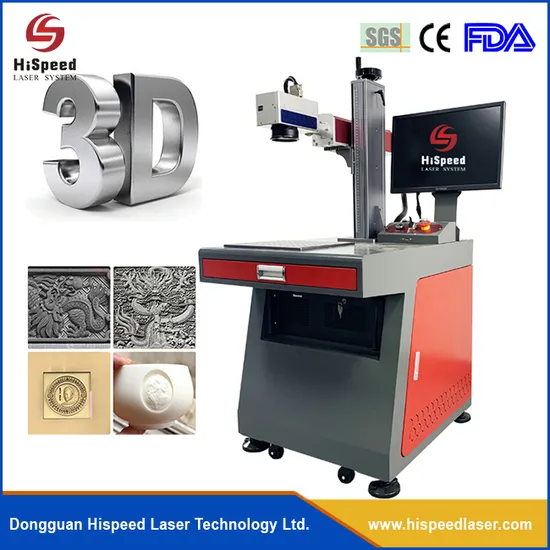

High Quality CNC Metal Plastic 3D Engraving and Cutting Laser Marking Machine 50W with Dynamic Auto Focus

Product Description

High Quality CNC Metal Plastic 3D Engraving and Cutting Laser Marking Machine 50w With Dynamic Auto focus

Product Description

The best solution of laser marking machine for curved surface marking in large objects is to install dynamic focusing system, dynamic system is the best solution so far in the realization of facular focusing minimum, and marking the largest , it will be high speed and flexibility.

MODEL	LS-YLP-20L/30L/50L
Laser type	Fiber (CO2 or UV is available)
Laser Power	20W, 30W, 50W
Marking Area	70*70mm/110*110mm/150*150mm/200x200mm/300*300mm/400*400mm (optional)
Purpose	Marking & Engraving
Galvanometer	Dynamic Auto focus 3D scan head system
Controller	Computer with marking software
Wavelength	1064nm
Marking Depth	0.03 - 0.5mm
Graphic format supported	JPG,BMP,DXF,PLT,STL
Cooling type	Air cooling
Operating parameter	0-40ºC
Laser module life	>70,000 - 100,000 hours
Working voltage	AC220V 50HZ, AC110V 60HZ
Warranty	2 years
Gross Weight	153KGS
Package(L*W*H)	89*70*120cm

PRODUCT DESCRIPTION	SYSTEM OPERATION	WINDOWS PC
	Software	MM3D laser marking controller
	Control card	PMC2e/UMC4
	Board interface	PCle/USB
	Language	International Language
	External axis control	XY platform control, Z-axis liting, rotation axis
Scanhead	Aperture	10mm
	The diameter of the input spot	6.0~8mm
	Dynamic Z-axis speed	>1400mm/s
	XY-axis scan speed	>7000mm/s
	Scan lens	Quartz field lens
	Operating temperature	25+10C
	Appendix	Support 2D precision correction file and the focal error correction file
Product application	Deep sculpture and cutting
	Surface, Sphere, Inclined surface
Extended function	Spiralling, Large picture splicing, Customized software development, CCD Visual Marking,

3d dynamic focusing fiber laser marking machine data reference

SCAN LENS DATA REFERENCE
		Fiber		UV
Marking range (mm)		Variable focal length range(mm) Variable focal length total (mm)		Variable focal lengthrange(mm) Variable focal length total (mm)
70*70		100-117	17	131-140	9
110*110		168-195	27	201-218	17
150*150		231-272	41	307-350	43
200*200		303-392	89	367-437	70
300*300		413-602	189	469-596	127
400*400		96-1036	440

Applications
1. Auto machinery industry: steel sleeve, piston ring, engine, factory metal flexible paper plates, engine metal flexible paper plates, machine tools, etc.
2. Electronic communications industry: the keyboard, electronic components, household appliances panel, fiber optic cable, cable,etc.
3. Hardware equipment industry: tools, measuring tools, cutting tools, sanitary ware, tableware, lock, knife cut, fitness equipment, stainless steel products, etc.
4. Buckle sign industry: buttons, bags buckle, belt buckle, gold and silver jewelry, signs, badges, attendance cards, greeting cards, calendars, photo cards, leather bags, belts, pens and pen boxes, awards, trophies, all kinds of certificates, collections, arts, stamps, tablets, etc.
5. Gauge glasses industry: metal case, the bottom of the table, glass frame, instrument panel, etc.
6. Wooden craft industry: wooden crafts, calligraphy, and painting to copy and process table, furniture decoration, etc.
7. Packaging bottle caps industry: tobacco, food, cosmetics and so packaging, metal bottle caps, cans, etc.

Detailed Photos

Product Parameters

Company Profile
Other Products
Why Hispeed Laser?

1.Factory

(1)We are Factory to make laser machines with years of experience.

(2)We are a reliable and experienced supplier. Our machine quality are assurable.

(3)CE and FDA certificate .

2.Warranty & After-Sale Service

(1) All the machines will be fully tested before shipment and free training for operator.

(2) The whole machine guarantee for 2 Years(some models)

(3) 24 hours' technical Support--Email, Telephone,Video Chat Or Romote assistance.

(4) User-friendly English Manuals for the Introduction of our Software/Machine and
CD (Guiding Videos) for Sotware's installing/Operation and
Machine'Using/Maintaining.

3.Easy to use and safety

(1)CD, Video, User Manual to guide you how to install, operate, maintain machine
step by step.

(2)limit switch for safe processing.Emergency stop-turn off machine immediately
After Service Policy
Training & Technical Support
1.Machine manual and Operation video will be provided with machine.
2.Software manual will be provided in softcopy.
3.Initial parameters in the software will be setup so the machine is "ready to use".
4.Online technical support requests will be reponsed within 1 hours during working time,we will guide you by email ,telephone or video chat.
5.Actually this laser marking machine is quite simple on operation,most of our users can start to use the machine and learn well by themselves in short time.
6.Engineer onsite technical support is available,visa ,air tickets,accommodation and local transportation fee will be on client's side.(Appointment needed )
The Difference between Hispeed Laser and Some other Suppliers
he DThe Difference between Hispeed Laser and Some other Suppliersifference between Hispeed Laser and Some other Supplie

Different Aspects	Hispeed Laser	Some Suppliers May
Windows System	Windows 10	Win 7 or XP
Laser Source/Generator	Brand New	Refurbished or Second-hand
Control Card & Software	Genuine original JCZ brand	Copied
Z-axis	Motorized Z-axis	Manuel
Red Light Focus	Two red light spot	none
Warranty	24 months	12 or 18 months
After Service	Response within 3 hours(working time)	response in 3 days or no response

Repair Parts	Send alternative parts immediately, minimized the users' production delay	Users have to send the faulty or broken parts back to the supplier firsty,wait to repaired and then resend to customer,delay production
Business Type	Factory; Real manufacturer (Indicated in the Business License)	Trading company or agent
Certifications	CE,FDA
Trade Capability	With Export License
Sales & Merchandiser Team	Years of professional experience in international business, understand customer's needs well, keep customer updated for every details,tension- free purchsing process	Lack of experience for export custom and process

Packaging & Shipping

FAQ Q1: What's the warranty? A1: Two years for laser source, one year for other parts, change or repair the broken parts during warranty, our FAE will teach you how to remove the broken parts by video. Warranty excluding man-made damage. We are real warranty based series number on the machine, not false or empty promises, any too long time warranty is unreliable, ourt warrannty is effective and enforceable. Q2: What's the package? A2: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic Bag for waterproof. Q3: How to install and run the machine? A3: You will get details in user manual, you only need install the column with laser path and put on monitor of computer. You will get a CD of orginal marking software and online video about basic operation. You also will get a software operation manual and you can be a laser marking master after reading and practics. You can send your questions to our online after-serive 24 hours. Q4: How can I know the machine is what exactly I need? A4: Please send us your material photo, marking speed demand, marking size demand and so on, you will get a promptly help from us. Q5: Can you give a discount? A5: No, because quality can't be discounted, but you can choose simple basic version for your application, please contact our sales to know more. Q6: How you can keep your quality. A6: Strict production process with four times checking from metal parts, optical components, installing specification to whole machines' 12 hours burning. Meet CE, FDA, and IEC standards, you will get a unquestionably reliable machine from Hispeed Laser! Your every peny is deserve.
Get Contact with us Now! Please advise us following inforamtion to recommend you most suitable machine:
1.What's kind of material do you want to mark? metal parts or non metal material?
2.What's the max working area do you need? we can provide you with 110*110mm, 175*175mm, and 220*220mm, 300*300mm, or customized as your demand
