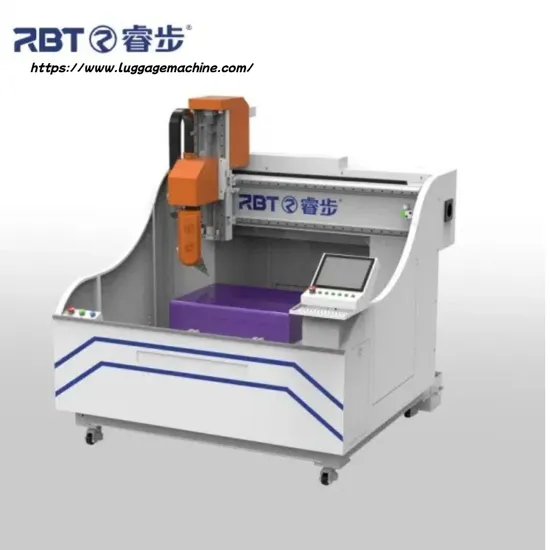

Innovative Design of Rbt Intelligent Control Luggage Five-Axis Punching Machine

Product Description

Machine Features:
1. Computer controlled three dimension cutting, which can process all the luggage holes and any parts of luggage
2.Two separate cutting work platform, while replacing the processed products maintaining stable, security greatly enhanced and greatly reducing the labor intensity of workers .
3.The machine storing path can be copied and used in any machine.
4. Automatic door completely closed design ( optional ), keeping the site clean and effectively reducing noise at the scene. The machine has the upgraded connection of automatic loading and unloading material, to implementation of unmannded and automatic mode.
5. providing the manual instruction and off-line programme cutting way, easy learn and easy understand, we can reuse the cutting programme, changing different luggages just only need 10 mins.
the manufacturing plant covers an area of about 26,660 square meters:
Material-welding assembly and debugging integration:
warehouse:
Parameters(for reference)

No.	Components/Specification	Brand/Parameter
1	Control System	Taiwan SYNTEC/HNC
2	Servo	Inovance/HCFA
3	Linear Guide	Taiwan SHAC
4	Screw	Taiwan TBI
5	Rack	LIANGCHI
6	Electrical components	France* S chneider
7	Pneumatic Components	Taiwan AirTAC
8	X/Y axis reducer	Japan* SHIMPO
9	C/B axis reducer	Japan* SHIMPO
10	Spindle	Customized by RBT company
11	Dimensions	L3400*W2290*H1870mm
12	Voltage	380V
13	Total power	14.2KW
14	Programming time	About 2 hours (depending on the programmer's proficiency)
15	Call the saved toolpath time again	About 10 minutes (depending on the programmer's operational proficiency)
16	Programming mode	,Manual teaching or offline programming, can be copied and applied
17	Storage path memory	512M/ expandable support U disk read processing
18	Processing mode	Can process all holes and any line of luggage
19	Lubrication system	Automatic refueling
20	X-axis effective stroke	2*1255mm /2*850mm
21	Y-axis effective stroke	1220mm /700mm
22	Z-axis effective stroke	485mm /210mm
23	C-axis effective stroke	±540°
24	B-axis effective stroke	±130°
25	Machine tool repeatability	±0.05mm
26	X/Y axis maximum speed	45000mm/min
27	Z axis maximum speed	28000mm/min

packing&delivery:
1.Plastic film packaging and put in plywood wooden cases or according to customer's requirements.
2.Shipping : Container transport.
