CNC Granite Cutting Machine / 5 Axis CNC Stone Routing and Cutting Machine

US$1,111,111.00 1 Set (MOQ)

Basic Info.

Model NO.
JCS1325-5AXIS
Function
Hollow out, Cutting, Line Engraving, Intaglio, Basso-relievo, Lettering, Engraving, Milling, Sculpturing
Application Material
Marble Granite Stone Wood Plastic
Automation
Automatic
Control
CNC
Motor Power
High Power
Engraving Head Speed Adjustability
Wide Adjustable Range
Current
AC
Application
Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry, Marble Granite Stone Wood Plastic
Customized
Customized
Model
5 Axis CNC Machine for Marble Granite Stone
Applications
Marble, Stone, Granite, Fiberglass, Wood, Plastic
Working Size
1300X2500X1000mm
Table
T-Slot with Water Tank
Spindle Power
10/12kw
Driving
Servo Motor and Driver
Inverter
Delta
Control System
Syntec
Xyz
Square Linear Guide Rail
Xy
Rack and Pinion
Z
Ball Screw
Cooling System
Double Water Cooling System
Oil System
Automatic
Option
Rotary Device
Transport Package
Standard Packing
Specification
5 AXIS
Trademark
CHAODA
Origin
Shandong, China
HS Code
8465990000
Production Capacity
100sets/Month

Packaging & Delivery

Package Size
110.00cm * 225.00cm * 226.00cm
Package Gross Weight
12500.000kg

Product Description

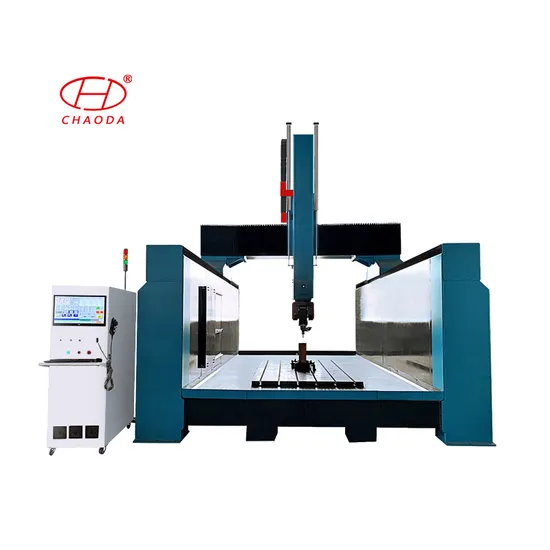

CNC Granite Cutting Machine / 5 Axis CNC Stone Routing and Cutting Machine
Heavy duty steel wall structure, keep machine with very good stability. Adopt good quality machine parts,to make machine with high performance and durability. 5 axis spindle can make engraving on different angles,like arc-surface milling,bending surface machining for 4D jobs. With disk/linear type automatic tool changer,spindle change tools automatically,no need manual work. High Z design,suitable for large three dimensional product machining. Advanced Syntec control system,very stable and easy to operate. Dust proof,water proof.
Model No.
 JCS1325-5AXIS
Lathe bed
 Heavy duty steel wall structure
Table
 T-slot with clamps, with water tank
Working size
 1300*2500*1000mm (Size can be customized)
X structure
Rack and pinion, linear square rail
Y structure
 Rack and pinion, linear square rail
Z structure
Ball screw, linear square rail
Spindle power
 13.5KW
Spindle rotating
 15000rpm
Tool magazine
 Linear type automatic tool changer, 8 tools ability
Control system
 Syntec with screen
Motor
 Servo
Oil system
 Automatic
Rotary device
 Option
Voltage
 AC380v,3 phase,50/60HZ

It can work on many materials like Marble, Granite, Stone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Grindstone ,Jade, Crystal, FiberGlass, Acrylic, Wood, PVC, EPS Foam, Aluminum composite panel, Aluminum block, Copper and so on.
1. Sample testing before shipment2. Provide 2 days free training for each machine3. 12 months warranty for each machine4. Friendly English version manual and operation videos for studying5. Free technical support by phone,email,chatting or remote6. Engineers available to service machinery overseas
