Material Handling Mobile Manurack Pallets Steel Rack for Storage

Product Description

Similar products of pallets steel rack
Specification of mobile manurack pallets

Similar design, different sizes
Model No.	Exterior Dimension	Loading Capacity	Finish	Quantities	Total container
	LxWxH(mm)	kg		sets
M1-Base	1395x1060x310	1500	Hot dip zinc	250	1x40'HQ
M1-Post	1200x60x2.5		Hot dip zinc	1000
M2-Base	1875x1060x310	1500	Hot dip zinc	150	1x40'HQ
M2-Post	1200x60x2.5		Hot dip zinc	600
M4-Base	1545x1050x310	1500	Powder coating	247	1x40'HQ
M4-Post	1510x60x2.5		Powder coating	988
M5-Base	1200x1000x310	1000	zinc	250	1x40'HQ
M5-Post	2000x60x2.5		zinc	1000
M6-Base	950x950x310	1000	zinc	160	1x40'HQ
M6-Post	1200x1000x2.5		Hot dip zinc	640
Material	Mild steel Q235
Application area	Warehouse, logistic, recycling, etc.
Remark	Costomized or OEM support
Key features	1.Ideal solution for palletized cargo. 2.eliminates the need for wooden pallets for loose cargo. 3.customized to suit your products and storage environment. 4.assembled and disassembled within seconds. 5.When not in use can be stowed away in less than 10% of space 6.No maintenance required

Material handling mobile manurack pallets steel rack for storage

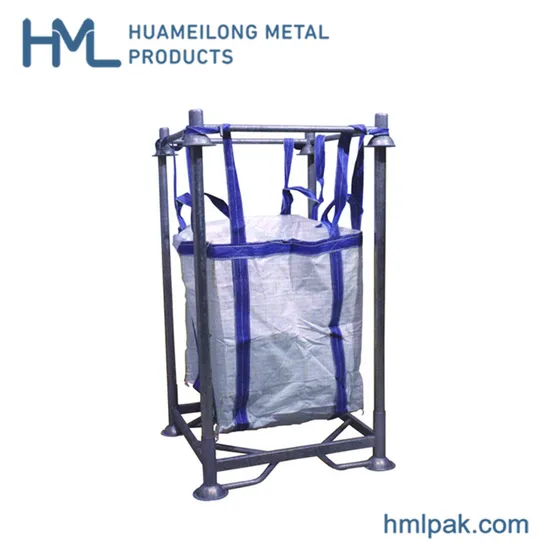

1 set = 2 bases + 4 posts, can use with big bag to store goods, load 1000kg, hot dip galvanized
Customized of steel rack for storage
Application, packaging & loading of mobile manurack pallets
Other kinds of metal products for your choice, OEM, ODM, Customized are all welcomed!
FAQ
1, What is the material being used for your products?
Mild steel Q235, Q195
2, How is the goods being packed?
Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with standard forklift truck or pallet jack.
3, What is the payment terms I can get?
TT or L/C at sight, DP etc
4, What kind of finish do you provide for your goods?
A.Electrol galvanized/Zinc plated: the zinc serves as a sacrificial anode( indoor storage)
B.Hot dip galvanized: it forms a coating of corrosion-resistant zinc(indoor/outdoor and cold storage)
C.Powder coating: a type of coating that is applied as a free-flowing, dry powder(indoor/outdoor storage)
5, What is the loading capacity?
In general, we have light duty(100~300kg) model,medium duty(400~800kg) model
and heavy duty(1000~1700kg) model available for your choice.
6 Which product can be used in cold storage?
Mobile rack,wire container and roll cage are all widely used in cold storage.
7 I like your design, but couldn't find the right model from the products list, is custom size available?
Yes, we do custom products and projects.
8 I would like to have my own design products and qty is not that big, is it ok?
Yes, we can go with your custom design, no matter small or big qty, however, pls understand the cost will be different.
9 I don't have drawing or picture available for the custom products, could you design it for me?
Yes, we can make the best suitable design for you but do need to know the details,
such as a) dimension b) loading capacity c)stackability d)operation environment
10 What is the minimum quantity I can order?
1x20'GP - qty is variable depend on the size
11 What is your average production lead time?
2-3 weeks against formal order and deposit.
12 Do I get any guarantee from your company?
3~10 years warranty in case that
A) Proper handling during operation, correctly forklift handling while stacking/unstacking
B) Overloading is prohibited
C) Environment request indoor, dry and not humid circumstance, do not contact with any corrosive chemical
material (for zinc plated and powder coated products, no limitation for hot dip galvanized)

---
