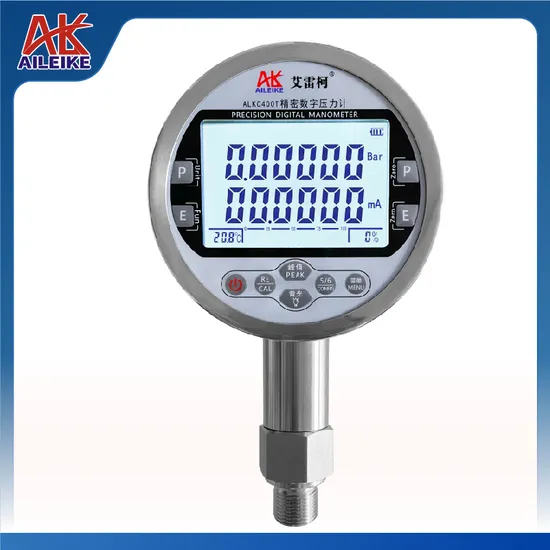

RS485 Precision Digital Pressure Gauge Hydraulic Pressure Gauge Vacuum Digital Pressure Gauge 0.05%Fs

Product Description

Gauge pressure		Micro pressure		High pressure		Absolute pressure
Range	Price	Range	Price	Range	Price	Rang	Price
-1~0 bar	552 USD	-0.01~0.01bar	725 USD	0~700bar	725 USD	1.013~0bar(abs)	725 USD
-1~6bar	552 USD	-0.015~0.015ar	725 USD	0~800bar	725 USD	160~0bar(abs)	725 USD
-1~160bar	552 USD	-0.03~0.03bar	725 USD	0~900bar	725 USD
-1~600bar	552 USD	-0.06~0.06bar	725 USD	0~1000bar	725 USD
0~2.5bar	552 USD	-0.1~0.1bar	725 USD
0~6bar	552 USD	-0.16~0.16bar	725 USD
0~16bar	552 USD	-0.3~0.3bar	725 USD
0~25bar	552 USD	0~0.03bar	725 USD
0~60bar	552 USD	0~0.06bar	725 USD
0~160bar	552 USD	0~0.1bar	725 USD
0~400bar	552 USD	0~0.3bar	725 USD
0~600bar	552 USD

Unit switch key bar,mbar,Pa,hPa, kPa,MPa,PSI,in.H2O, in.Hg,mmH2O,cmH2O, mH2O,mmHg,mHg, kgf/cm² ,Torr	Current key Current measurement	Peak Key HI:shows peaks LO:Display Valley values	ON/OFF One click on/off function	The return key Return the primary pressure unit key (Reuse the menu alignment key)	The zero key Zero at one key without pressure	The zero key Zero at one button without current	The menu key Pressure full range calibration sampling current rate	Display swith Key Select 5-digit 6-digit display	Backlight key Backlight on after pressing the button	Connecting thread M20x1.5

Product name	Precision digital pressure gauge
Model	ALKC400T
Processing customization	Yes
Charging Voltage	8.4v
Built-in LithiumBattery	7.4V 1300mAh
Measuring range	-1~0/0~600/0~1000bar(1.013~0bar)abs
Current measurement	±30.0000 mA
LCD display	Press to select 5-digit or 6-digit display
DC power supply	24VDC
Accuracy	0.05%FS
Sampling rate	(3 times/second),(5 times/second),(10times/second),(20 times/second) Optional
Connection method	The default thread size is M20 × 1.5. If you need other thread sizes such as Bsp 1/2, G1/4, NPT1/4, G1/2, NPT1/2, etc., other special thread sizes can also be customized
Overload capacity	It is 1.2 times the upper limit of the range
Environment	0~50ºC
Communication function	RS485 (MODBUS-RTU)
Source	External charger 220VAC 50Hz 3VA
Measuring medium	Air, water, oil,and other non corrosive mediafor stainless steel
Weight	Approximately 0.6kg (pressure gauge body only)
Weight of instrumentbox	Approximately 0.8kg
Instrument box size	260×215×110mm
Product weight	Approximately 1.7kg (packaging material iscardboard box)
Product packaging size	290×260×135mm

Overview
1 . The precision digital pressure gauge is a multifunctional instrument that can measure pressure while also measuring ± 30mADC current and pressure switch testing. It has a 24VD output and can be used as a power supply for 4-20mA two-wire transmitters. It has the function of recording maximum and minimum values.
2. Using a 24 bit high-performance A/D converter combined with a high-performance microprocessor to continuously correct the various performance and technical indicators of the instrument, ensuring that the instrument is used for a long time over a wide temperature range without affecting its accuracy.
3. Low power consumption, the battery adopts imported high-energy lithium batteries and an imported stainless steel casing, which has a beautiful appearance, durability, and strong anti-interference ability.
4. Intelligent charging with automatic shutdown and protection functions for overcharging and undervoltage of the battery. The low-power shutdown protection function ensures that the battery energy is not damaged when the instrument is not in use for a long time, ensuring the long service life of the battery,
5. Ultra high resolution 1:1000000, continuous display with no broken code or skip word phenomenon.
6. Adopting thin film panels and imported touch switches, backlit LCD dual row display, low power consumption, innovative style, and long button life.
7. Pressure and current digital calibration do not require any hardware adjustments, and can be directly operated on the panel to adjust the zero and full range.
8. Built in six digit high-precision DC digital ammeter.

---
