90A UC2 Compliant 2-Pole High Power Latching Relay for Smart Meter

Product Description

Product Description

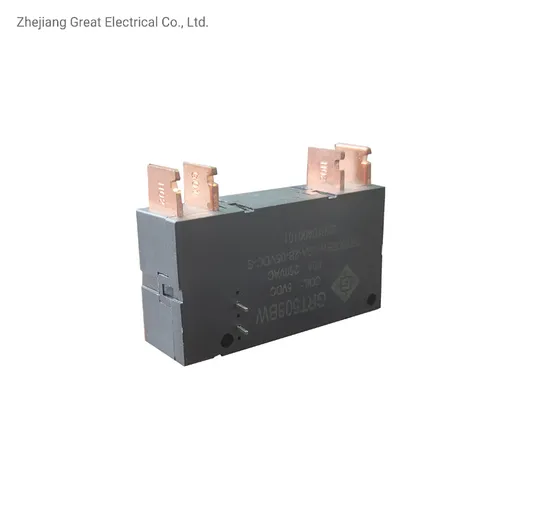

2-pole Latching Relay
90A contact switching capability
Only impulse excitation needed, both for single and double coil.
Low power consumption, small in size
Custom assemblies available with flexible wire and/or copper straps, and/or with integrated shunt
4KV dielectric strength between coil and contacts
RoHS compliant
IEC62055-31 UC2 compliant
Outline dimensions:(55.6x 30 x16.5) mm
Product Parameters
Contact Data

Contact Form	2B
Contact Material	AgSnO2
Contact Resistance	Max. 1.0MΩ (1A 6VDC)
Rated Load ( Resistive)	90A 250VAC
Max. Switching Voltage	250VAC
Max. Switching Current	90A
Max. Switching Power	22,500VA
Mechanical Service Life	1x105 OPS
Electrical Service Life	1x104 OPS
Max. Short-circuit Current	2500A/10ms
	4500A/10ms (no explosion)

Characteristics

Operate Time	Max. 40ms
Release Time	Max. 40ms
Insulation Resistance (500VDC)	Min. 1000MΩ
Dielectric Strength between Contact & Coil	4000VAC
Dielectric Strength of Contact Opening	2000VAC
Dielectric Strength between Contacts	4000VAC
Surge Voltage from Contact to Coil	6KVAC
Creepage Distance	8mm
Unit Weight	about 59g

Environment Data

Ambient Temperature	-40ºC~ 85ºC
Relative Humidity	5%~85%RH
Vibration	10~55Hz 1.5mm
Shock	98M/S2 (functional)
	980M/S2 (survival)

Coil Data

voltage	resistance(Ω)±10%		power(W)		operating	releasing	allowing	pulse duration
	single	double	single	double	VDC	VDC	VDC	ms
6	12	6/6	3.0	6.0	≤4.2	≤4.2	9	≥80
9	27	13.5/13.5			≤6.3	≤6.3	13.5
12	48	24/24			≤8.4	≤8.4	18
24	192	96/96			≤16.8	≤16.8	36
