| Product name | level | pdc Types | Adaptive strata | diametermm | thread buckle | remarks |

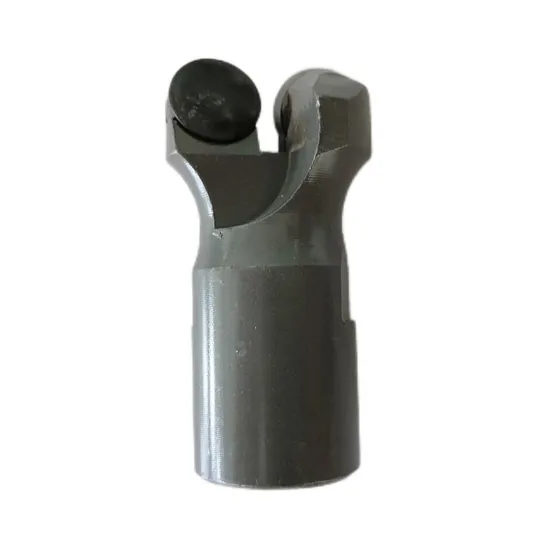

| PDC Two wing anchor bit | Super strong | whole/plain film | F≤12 | 25 27 28 29 30 32 36 42 | M14*1.5 M16*2 M14*2 M12*2 | We choose diamond composite sheet flat sheet and spherical sheet two, flat sheet footage fast, the application of complete formation. Spherical sheet strong impact resistance, not easy to collapse, suitable for broken and complex strata. |
| High strength | whole/spherical plate | F≤12 | ||||
| strengthen | whole/half | F≤10 | ||||
| ordinary | whole/half | F≤8 |
| Product name | level | pdc Types | Adaptive strata | diameter mm | thread buckle | remarks |
| PDC three wing anchor bit | half | F≤16 | 27,28,30,32 | M14*1.5 M16*2 M14*2 M12*2 | We choose diamond composite sheet flat sheet and spherical sheet two, flat sheet footage fast, the application of complete formation. Spherical sheet strong impact resistance, not easy to collapse, suitable for broken and complex strata. | |
| whole | F≤16 | 36,42 |
