Best Selling Cheap Reinforced Concrete Electric Pole Mould in China

Product Description

best selling cheap reinforced concrete electric pole mould in China Sales Manager:Sally Wu



1.simple introduction of concrete electric pole making line
Pre-stressed Concrete Electric Pole Making Machine is a kind of mould equipment, which used for making a variety of different diameter and length of reinforced concrete poles and other cement products.
Pre-stressed Concrete Electric Pole Making Machine is operated by remote-controlled continuously variable motor. It runs smoothly and has a variable-speed range. So the production of concrete pipes and piles are good at quality.
The base of the machine is welded in box-type structure, sturdiness and durability. The bearings are sealed and reliable, long life. Random electric control equipment is complete and easy to use.
2. Working Principle of concrete electric pole making line
1. Adding the slurry into the mould, it is driven quickly and rotated in the same speed of the machine. Each component is separated and released under the centrifugal force. Usually the higher the slurry rotate speed, the better the slurry separating effect.
2. Centrifugal sedimentation is the use of different density of each component in the slurry, which is rotated under the centrifugal force. To realize the liquid - solid (or liquid - liquid) separation.
3. The speed of separation is slow when the viscosity of slurry is high.
4. It is good for centrifugal sedimentation when the slurry density is different in each component.
3. Technical Parameter of concrete electric pole making line

top end inner diameter (mm)	Tread (mm)	Running wheel diameter (mm)	Length (m)
150	2000	600	7-12
170	2000	600	7-12
190	2000	650	7-15
230	2000	650	6-9
300 equal diameter	2000	600	6-9
350 equal diameter	2000	650	6-12
310	2000	650-780	6-15

4.Advantanges of concrete electric pole making line
1. Saving a great deal of steel, about 30~70% (employing cold drawn steel wire can save 30%~60%; employing high stress steel wire can save 40%~69%).
2. Crack resistance can increase about 3~5 times.
3. Rigidity increases 1~3 times.
4. Reducing the cost (using cold drawn steel wire can reduce 25%~40%; using high stress steel wire can reduce 12%~21%).
5. Good durability, can delay the existence and expansion of cracks.
6, Protect the environment on which human beings depend on for existence, and reduce the deforestation.

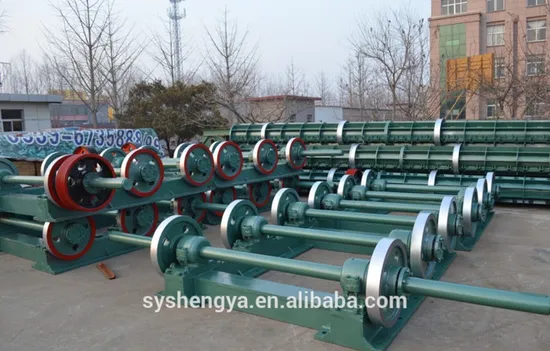

(1)concrete electric pole mould
(2) centrifugal spinning machine
(3)Feeding material for concrete electric pole making line
(4)Put steel bar for concrete electric pole making line
(5)Tension for concrete electric pole making line
(6) spinning and moulding
6.Warmly welcome to visit our factory.Shengya is ur best choice!

---
