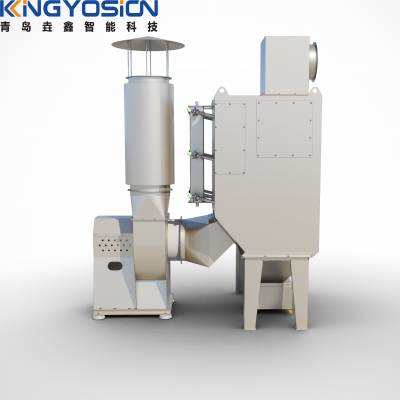

Pulse Dust Collector
Usage Introduction:
YXM series oblique insertion filter cartridge dust collector is mainly used to collect suspended dust and particles. Whether it is used for air pollution control or as a part of the production process, it can ensure efficient and continuous online dust collection. The machine has the advantages of stable operation, large air handling capacity, small volume and convenient maintenance. It can be widely used in metallurgical, mechanical, foundry, chemical and other sectors.
Product Features:
l Large air volume processing: Equipped with an integrated centrifugal fan, with high suction capacity and stable operation
l Small footprint: The pulse dust collector has a compact structure, saving space and strong practicality
l Easy installation: Adopting an integrated design, good sealing, and convenient installation
Technical Parameter:
Model
YXM-J5500RH
YXM-N7500RH
YXM-11000RH
Air volume
7500 m³/h
10650 m³/h
15600 m³/h
Pressure
2100 Pa
2554 Pa
3154 Pa
Material
3 mm thickness Steel
Motor
5.5kw
7.5kw
11kw
Filter Cartridge QTY
4
6
9
Filter Cartridge Size
325×605mm
350x660mm
350x660mm
Filtration Area
60 ㎡
90㎡
135 ㎡
