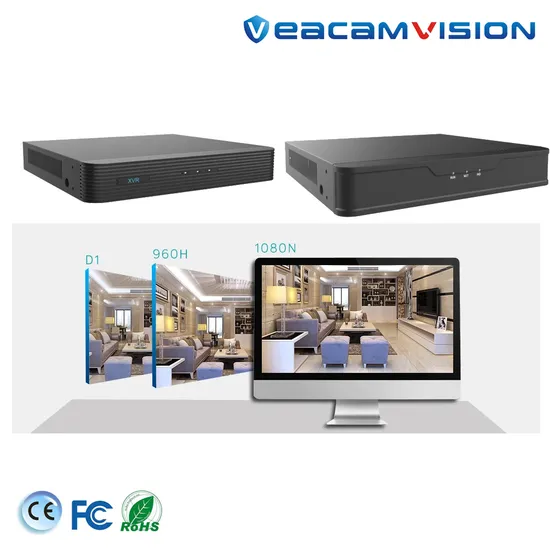

Advanced 5-in-1 Hybrid CCTV Recorder for Diverse Cameras

Product Description

Product Description
16CH XVR Onvif CCTV DVR Hybrid Recorder Key Features
Supports H.265/H.264 video formats
Supports audio over coaxial cable
Supports TVI, AHD, CVI, CVBS, and IP cameras with adaptive access
16-channel BNC input
Supports 1-ch HDMI output, 1-ch VGA output at up to 1920*1080 resolution
Long transmission distance over coaxial cable

Introducing the 16CH XVR Onvif CCTV DVR Hybrid Recorder, a versatile and high-performance solution for your surveillance needs. With support for H.265 and H.264 video formats, this hybrid recorder ensures efficient and reliable video compression, allowing you to store more footage without compromising on quality.
One of the standout features of this hybrid recorder is its ability to support audio over coaxial cable. This means that you can capture not only video but also audio, providing you with a more comprehensive surveillance solution.
Whether you have TVI, AHD, CVI, CVBS, or IP cameras, this hybrid recorder has got you covered. It supports adaptive access for all these camera types, ensuring seamless integration and compatibility.
With its 16-channel BNC input, you can connect multiple cameras to the recorder, allowing you to monitor various areas simultaneously. The 1-ch HDMI output and 1-ch VGA output, both capable of delivering up to 1920*1080 resolution, enable you to view your footage in high definition on different display devices.
Another advantage of this hybrid recorder is its long transmission distance over coaxial cable. This means that you can install your cameras at a distance from the recorder without worrying about signal degradation, ensuring reliable and uninterrupted surveillance.
Upgrade your surveillance system with the 16CH XVR Onvif CCTV DVR Hybrid Recorder and enjoy enhanced video compression, audio support, and compatibility with various camera types. Order yours today and experience the benefits of this advanced hybrid recorder.
Product Parameters

Model	VCXVR-516UA1S
Video/Audio Input
Analog Video Input	16-ch, BNC
IP Video Input	8-ch(only IP up to 16ch), each channel up to 8MP
Supported Analog Camera Types	Support AHD input: 5MP@12fps 4MP@15fps 1080P@30fps Support TVI input: 5MP@12fps 4MP@15fps 1080P@30fps Support CVI input: 1080P@30fps 720P@30fps Support CVBS input
Audio Input	1-ch, RCA
Network
Incoming Bandwidth	40Mbps (up to 56Mbps after all analog camera conversion)
Outgoing Bandwidth	64Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
VGA Output	1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI Output	1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Audio Output	1-ch, RCA
Two-way Audio	1-ch, RCA
Synchronous Playback	16-ch
Encoding
Recording Resolution	5MP Lite/4MP Lite /1080P/1080P Lite/720P/D1/CIF
Recording Frame Rate	Main stream:	Sub stream:
	5MP Lite@6fps	D1@6fps
	4MP Lite@8fps	D1@8fps
	1080P Lite@15fps	D1@6fps
	720P@15fps	D1@10fps
Hard Disk
SATA	1 SATA interface
Capacity	Up to 6TB for each HDD
External Interface
Network Interface	1RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface	Rear panel:2 x USB2.0
Serial Interface	1 x RS485
General
Power Supply	12V DC Power Consumption: ≤ 10 W( without HDD )
Working Environment	-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H)	260mm ×243mm× 39mm (10.1" × 9.6"×1.8")
Weight ( without HDD )	≤1.1 Kg ( 2.42lb )
