Safe and Reliable Zengshan Spiral Paper Tube Machine for Chemical Fibre

Product Description

Safe and reliable/spiral paper tube machine/ for chemical fibre
Product details
FQ-1600's Paper Slitter:
FQ-1600's function is to slit paper into various sizes before reeling. It has self-locking function for upper and lower blades.Pneumatic reeling spindle, double reeling and step-less speed adjustment.

Maximum width	1600mm
Power	5.5kw
Slitting width	25mm+
Machine size	2500mm*2500mm*1500mm

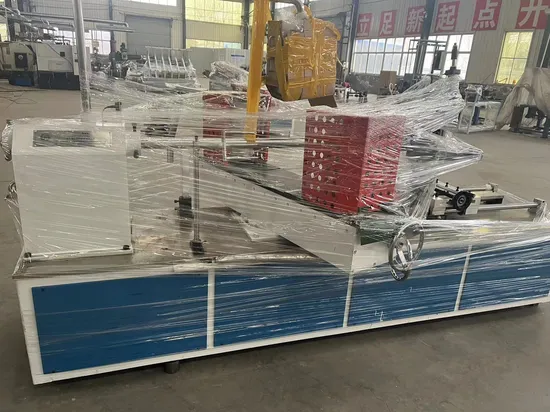

LQZ-2 Tracing, Cutting Spiral tube machine:
The functions to roll the tube and long tube cutting. Tolerances: +5mm, which will meet the standard for cloth tube reeling and air spinning reeling. If particular length needed, precision cutter will need be connected.

Paper tube thickness	0.8-10mm
Paper tube diameter	20-200mm
Speed	3-15meters/min(step-less speed adjustment)
Gluing mode	Inclined gluing
Paper Hanger	Whole frame

QGJ-98 Precise Cutter:
The function is to cut the semi-finished product into the required length of chemical fibre tube and air spinning tube.The machine has pneumatic control which makes it easy to adjust.Suitable for various specification of air-spinning tube and short tube.

Paper tube inner diameter	30-100mm
Cutting thickness	1-8mm
Cutting length	80mm-1500mm
Blades	8 sets(standard)
Power	1.5kw
Operator	1
