Fiberhome Fiber GYXTW Swa Armored 12 24 Core Fiber Optic Cable China Factory

Product Description

Product Description Mini-Span All-Dielectric Self-Supporting (ADSS) cable's designed for outside plant aerial and duct applications in local and campus network loop architectures.From pole-to-build to town-town installations, the Mini-Span cabling system, which includes cables, suspension, dead end and termination enclosures, offers a comprehensive transmission circuit infrastructure with proven, high reliability performance. See EFON's Fiber Optic Cable Hardware catalog for more information. Mini-Span includes fiber counts up to 144 optical fibers and any type or combination of single-mode and multi-mode fibers with the cable. Pole-to-Pole span lengths range from 50 feet to over 650 feet (30-200meters).

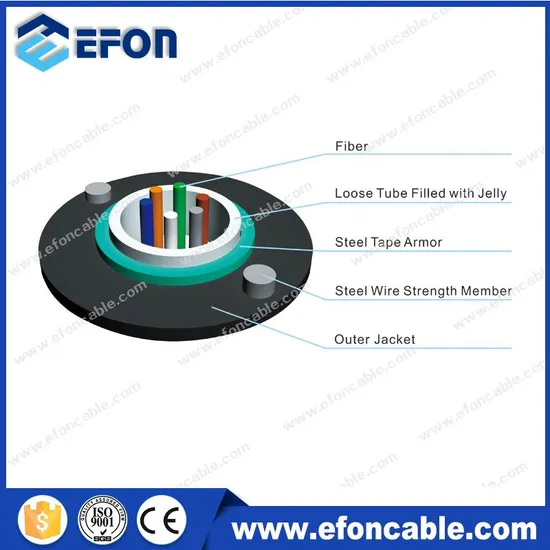

Product Construction:
Fiber:
2-22 fibers
Uni-loose tube gel-filled
Strength Member:
Steel wire
Armor:
Corrugated steel tape
Outer Jacket:
Black UV polyethylene (PE).
Features:
Uni-tube gel-filled construction for superior fiber protection. Metallic armor to protect cable from rodent attack and mechanical damage. Embedded steel wire provide desirable tensile strength and crush resistance. Compact, easy to install. UV and waterproof design. Applications: Interbuilding voice or data communication. Installed in duct, underground conduit. FTTx. Optical Characteristics:

Fiber Type		G.652	G.655	50/125^m	62.5/125^m
Attenuation (+20X)	850 nm			<3.0 dB/km	<3.3 dB/km
	1300 nm			<1.0 dB/km	<1.0 dB/km
	1310 nm	<0.36 dB/km	<0.40 dB/km
	1550 nm	<0.22 dB/km	<0.23 dB/km
Bandwidth	850 nm			>500 MHz-km	>200 Mhz-km
	1300 nm			>500 MHz-km	>500 Mhz-km
Numerical Aperture				0.200±0.015 NA	0.275±0.015 NA
Cable Cut-off Wavelength cc		<1260 nm	<1450 nm

Structure and Technical Specifications

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
			Short Term	Long Term	Short Term	Long Term
2~12	8.6	95	1500	600	1000	300
14~24	9.0	110	1500	600	1000	300

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more detailed information.
For more detailed information.
We produce and test cable comply with following standard:

Mechanical Performance
Max Tension Performance	IEC 60794-1-2-E
Max.Operation Tension	IEC 60794-1-2-E1
Crush Test	IEC 6079 -1-2-E3
Impact Test	IEC 60794-1-2-E4
Repeated Bending	IEC 60794-1-2-E6
Torsion Test	IEC 60794-1-2-E7
Cable bend	IEC 60794-1-2-E11A
Attenuation Coefficient	ITU-T G.652
Structural Test	IEC-60793-1-20
Environmental Performance
Temperature Cycling	IEC 60794-1-2-F1
Water Penetration	IEC 60794-1-2-F5B
Filing Compound Flow	IEC 60794-1-E1

Main products
About us
Located in Ningbo, the main seaport city in China, Ningbo Haishu Efon Communication Limited is a professional manufacturer of fiber optic cables.We have more than 15 years' experience in producing communication cables and fiber optic cables.Since then we have been growing to become a leading Chinese manufacturer and exporter of fiber optic products around the world. Quality and Safety
We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers.Besides, all of our products have been strictly inspected before shipment.Our products have passed RoHS, ISO9001 and TLC certifications.
Our Principles
Full customer satisfaction
Commitment to high-quality service
Long-term cooperation and profits for each other
FAQ
Payment
For large orders, T/T , L/C, and E-credit lines are all offered.
For small orders, credit-cards are accepted.

Shipping & Delivery
We will send the products within 10 days.
We ship small batched by air, or large orders by container.

Return and Warranty:
All products have been tested before ship out
All products have 5 years warranty.If there is no man-made problem ,we will replace or repair for you freely.
We own the best after-sale service.If any problems happen ,our team will do our best to solve for customers.
Thank you very much for viewing this page, and wish you a nice day!

---
