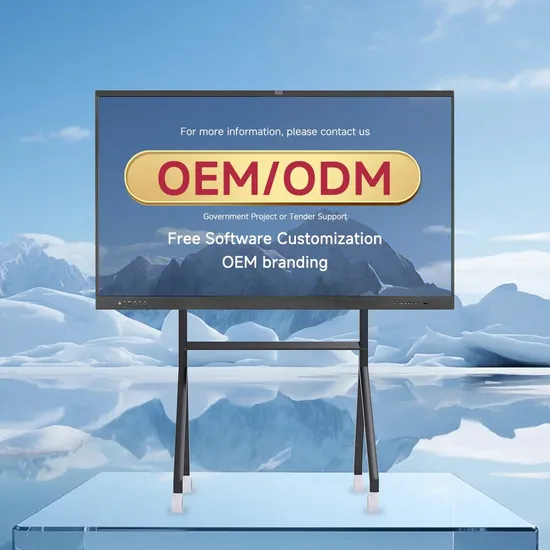

Riotouch 65/75/86 Inch Android 13/14 Interactive Flat Panel Smart Board Classroom Touch Board

Product Description

Product Description
Brief description:1.32 touch points,10 writing points2.infrared touch screen monitor3.all in one pc
4.finger or pen or any opaque object can touch, no need special pen
5.Anti-glare whiteboard surface, protect eyes

Specification:
Best selling premium ir sensor 75 inch latest technology new technology ir touch screen

LED Specifications
Available size: 50", 55", 65", 70",75", 84"
Below is the specification of 75" touch screen monitor.

LED Parameters	Size	74.5
	LED Brand	CMO
	External Size	1815.8*1024.8*106.7mm
	Touch Size	1720.2(h)x928.2(v)mm
	Carton Size	1966*265*1163mm
Parameters
	Net Weight	100kg
	Gross Weight	120kg
Power Parameters	Power	< 400W
	Standby Power	<1W
	Active Display Area	1720.2(h)x928.2(v)mm
	Pixel Pitch (Sub Pixel)	0.143 (H) x 0.430 (V)mm
Display	Display Colors	10bit(D), 1.06Billon colors
Parameters	Number of Pixels	3840*2160 pixels
	Brightness	350cd/m2
	Viewing Angle	178 Degree
	TV Standard	NTSC M/N,PAL BG/DK/I/H,SECAM L/L
	Multimedia Formats	MPEG1,MPEG2,MPEG4,H264,RM,RMVB,MOV,MJPEG
	USB2.0 Multimedia Playback	Vido/Audio/Picture
	USB System Upgrading Online	Support USB online upgrading function
TV Parameters	Resolution	Max. 1080P format
	HDMI	V1.4, 720P/1080P
	Scanning Format	Support 1080i Video crisscross DAS (Dynamic Adaptive Scan )
	Sound Control	Automatic sound standard detection, support for balance adjustment and surround Sound
	Sound Output	2X10W
	USB Multimedia Input ports	1-line
	Touchscreen port	1-line USB2.0
	HDMI Input port	3-line (HDMI1 keep for Inside OPS)
	VGA port	2-line IN 1-line OUT
	PC Audio port	1-line
output ports
	Earphone Out	1-line
	Component Audio In	1-line
	RF Input port	3-line
	AV Input Output port	1-line
	USB Multimedia Input ports	2-line USB3.0, 2-line USB2.0
	Touchscreen port	1-line (Inside)
	HDMI Input port	1-line
	VGA Input port	1-line
OPS PC Input and
	Audio port	1-line
Output
	MIC Input	1-line
	IR Infrared Port	1-line
	RJ45 LAN	1-line
	Touch Technology	Infrared touch technology
	Touch mode	10 points touch
	Inductive objects	Finger, pen or any other opaque objects
	Inductive size	Diameter≥5mm
	Resolution	32767*32767
		1) First dot(click):8ms, continuously(writing):3ms
	Response time	2) multipoint click:first dot(click):8ms,continuously(writing):8ms
		3) Mouse click:first dot(click):8ms,continuously(writing):8ms
	Cursor speed	UP to 300 dots/s Multipoint,mouse click:125 dot/s
	Operating life	≥60,000,000 times to click
Touch	Power	USB power supply (4.6-5V, DC)
	Power consumption	≤1w
	Operation Systerm	Windows 8, windows 7, Android, XP, Mac, Linux
	Calibration	HID devices standard, accord with Win7 multi-touch protocol, no need special software to
		calibrate, just use Table PC setting to finish the calibration.
	Anti-light decay function	Anti-light decay circuits to prevent the performance degradation caused by long working
		hours
	LED Test Software	Supply touch screen LED test software to test the function of each couple of the LED lights
		and the drawing functions
	Antilight interference function	can work properly in direct sunlight condition
	Wall brackets	1 set
	Remote Control	Remote control
	USB cable	1.5m USB cable for touch monitor, USB2.0 (Without PC option)
	HDMI cable	1.5m HDMI cable (Without PC option)
	VGA cable	1.5m VGA cable (Without PC option)
	Audio cable	1.5m audio cable (Without PC option)
	CD with Software	1 pcs
	Pens without ink	2 pcs
	User manul	1 pcs

Product Overviews
Application :
1. Business Institutions: Department Store, Super Market, Exclusive Store, Hotel, Restaurant, Medicine Store, etc.
2. Financial Institutions: Bank, Stock Market, Insurance Company, etc.
3. Public Services: Hospital, School, Telecom Hall, Post Office, etc.
4. Public Places: Subway, Airport, Bookstore, Park, Exhibition Center, Stadium, Museum, Ticket Agency, HR Market, Lottery Center, etc.
5. Real Eatates: Apartment, Villa, Business Building, etc.
6. Entertainment Places: Cinema, Gym, Holiday Inn, Nightclub, Massage Parlor, Internet Cafe, Golf, etc.
Packaging & Shipping

Package : 1 Set / carton ( carton Inside +wooden carton outside )
Delivery time: 4-10 working days after the payment

Our Services
1.We supply Education Software for free if you buy the Touch screen monitor or Interactive Whiteboard from Riotouch.

2. We will supply Software OEM Service for our VIP customer (The customer who order above 100pcs whiteboard or 20pcs touch monitor could be our VIP customers)
3.Cheaper Price with high quality products.

4.Fast delivery and excellent sale and after-sale service

5.3 years warranty of touch frame is guaranteed
FAQ

1. Q: What's the warranty and service?

A: We provide OEM and ODM service and customized service,3 years warranty for SKD,1 year warranty for others

2. Q: How to assemble and use the products?

A: Please check the user's manual for reference

3. Q: Whether to provide any teaching software?

A: Yes, we provide free education software

4 Q: How to make the order?

A: Send detailed inquiry to us, then we will reply you with the Proforma Invioce. Make the payment after you confirm the PI. We ship out the products by express or by sea within 4-7 days after we receive the payment. Then you will get the cargos soon.

---
