Efficient Plastic Pipe Machine for Manufacturing

Product Description

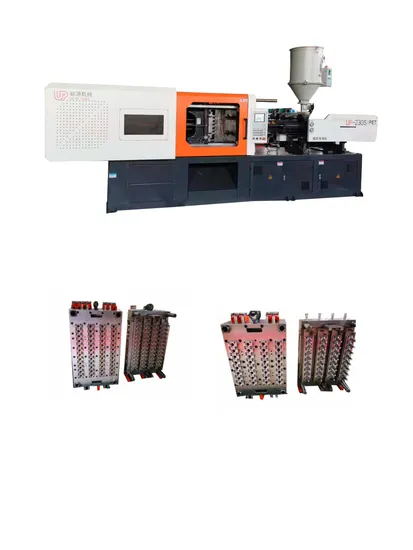

Product Description: 230T PET Injection Molding Machine
Introducing the 230T PET Injection Molding Machine from Ningbo Union Power Machinery Co., Ltd. This machine is specifically designed to cater to the unique plastic molding characteristics of PET, ensuring optimal performance and efficiency.
Special plasticizing module with a length-diameter ratio of 22:1 for enhanced plasticizing output and quality
Large injection weight capacity
Powerful power source configuration reducing overall cycle time
Plasticizing action can be synchronized with mold closing actions, reducing molding cycle time
Experience the precision and reliability of our PET preform injection molding machine, engineered to meet the demands of modern manufacturing processes.

Technical Parameters	Model UP-230T PET
Injection Unit	A	B	C
Screw diameter (mm)	50	55	60
Shot Volume (cm3)	461	558	664
Injection weight (g)	553	669	796
injection pressure (Mpa)	169	142	121
Screw speed (rmp)	155
Clamping Unit
Clamping force (KN)	2300
Open stroke (mm)	475
Max Mold height (mm)	550
Min Mold height (mm)	220
Space between tie bars(mm)	530*530
Ejector force (KN)	70
Ejector stroke (mm)	135
Others
Pump pressure (Mpa)	16
Motor/driving power (KW)	22(21.2)
Heating power (KW)	14.2
Machine dimension (M)	5.8*1.55*2.15
Machine weight (T)	6.3
Oiltank cubage (L)	350

---
