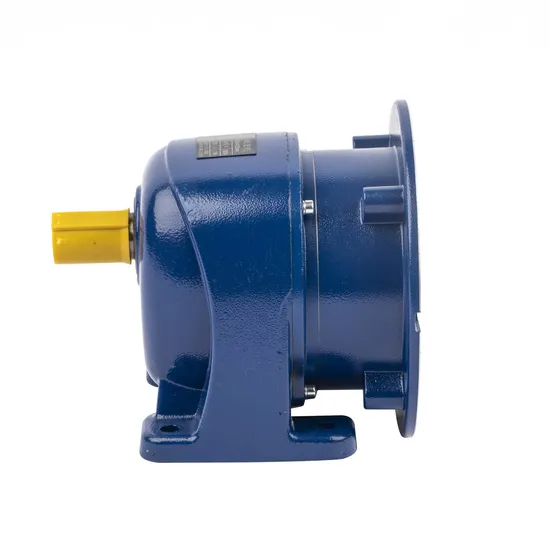

Helical Gearbox with Motor G3 Series

Product Description

Technical performance and selection reference

Normal Ratio		5	10	15	20	25	30	40	50		60	80	100	100	120	160	200
0.2kw	output speed ratio	Φ18					Φ22							Φ28
	actual speed ratio	4.97	10.12	15.16	20.08	24.89	30.21	40.55	50.32		60.75	80.77	100.23	104.08	120.88	161.07	196.43
	n2(r/min)	282	138	92	70	56	46	35	29		23	17	14	13	12	9	7
	M2(NM)	6.5	12.6	19.1	26.3	32.6	38.9	50.4	63		75.6	100.8	103.9	125.4	150	200.4	250.7

Note recommendations
To install the reduction unit it is necessary tonote the following recommendations:
1. Check the correct direction of rotation of thereduction unit output shaft before fitting the unit tothe machine.
2. Before mount with the prime moveanddevice,please check the reducers every axiadiameter, aperture,key and key slot,
to be theirdimensions are not deviation, and avoidassembaurtoo tight or too loose, unless it wilinfluence the reducer's performance.
3. The mounting on the machine must be stableto avoid anv vibration.
4.Whenever possible,protect the reductiorunit against solar radiation and bad weather.
5.In the case of particularly lengthy periods ofstorage (4-6 months), if the oil seal is not immersedin the lubricant inside the unit.
It is recommended tochange it since the rubber could stick to the shaft ormay even have lost the elasticity it needs to functionproperly.
6.Painting must definitely not go over rubberparts and the holes on the breather plugs, if any.
7.When connect with hollow or solid shaftplease grease the joint to avoid lock or oxidation.
8.Check the correct level of the lubricantthrough the indicator, if there is one.
9. Starting must take place gradually, withoutimmediately applying the maximum load
10. Supporting unit is required when usingvarious of reducer matched with motor directiy andthe wsight of motor is a little bigger than common.
11 .Ensure the motor cools correctly byassuring good passage of air from the fan side.
12. In the case of ambient temperatures<-5°Cor>+40°C call the Technical Service.

---
