500kg Capacity Easy Assemble Logistics Nestable Rolling Metal Storage Cage

Product Description

Similar products of rolling metal storage cage
(Available in 2, 3, or 4 sided in filled with steel rods and support rods)
Specifications of nestable rolling metal storage cage

Same design, different sizes
Model No.	Exterior Dimension	Tube Diameter	Wire Diameter	Loading Capacity	Loaded in 1x40'HQ
	LxWxH(mm)	mm	mm	kg	sets
HM-RC007	720x810x1650	Φ20x2	Φ8&Φ 6	300	450
HM-RC008	734x854x1680	Φ19x2	Φ10&Φ 6	500	360
HM-RC009	734x854x1680	Φ19x2	Φ10&Φ 6	500	320
HM-RC010	734x854x1680	Φ19x2	Φ3	500	320
Material	Mild steel Q235
Available design	1.Optional extra gates, removable shelf(each with 60kg to 80kg loading capacity) and top lid 2. Optional base -- square, "A", "Z" type design 3. Possible to add name plates for identification
Application area	Warehouse, logistic, supermarket, etc.
Finish	Zinc/powder coating/hot dip galvanized
Remark	Costomized or OEM support
Product Features	1.Steel frame with wire mesh in-fill 2.Available in 2,3, or 4 sided in filled with steel rods and support rods 3.2 fixed and 2 swivel castors with or without brakes 4.Castors material options include nylon, pp as well as rubber

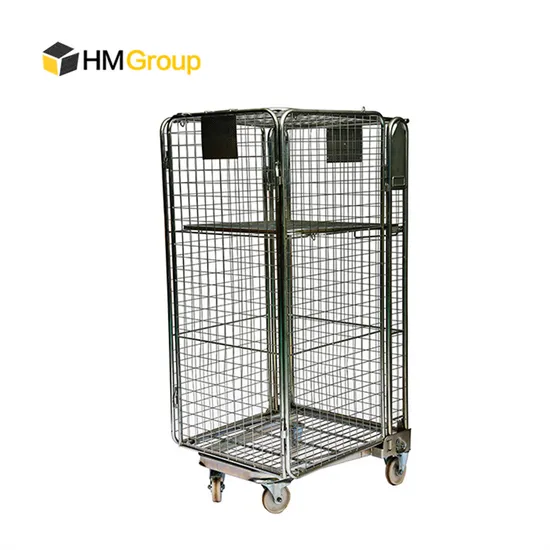

500kg capacity easy assemble logistics nestable rolling metal storage cage
Four sided nesting "A" frame, with top lid. Its tight mesh design makes it also the perfect anti-theft unit
Customized of logistics rolling metal storage cage
Application, packaging & loading of easy assemble rolling metal storage cage
Other kinds of metal products for your choice, OEM, ODM, Customized are all welcomed!
FAQ
1, What is the material being used for your products?
Mild steel Q235, Q195
2, How is the goods being packed?
Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with standard forklift truck or pallet jack.
3, What is the payment terms I can get?
TT or L/C at sight, DP etc
4, What kind of finish do you provide for your goods?
A.Electrol galvanized/Zinc plated: the zinc serves as a sacrificial anode( indoor storage)
B.Hot dip galvanized: it forms a coating of corrosion-resistant zinc(indoor/outdoor and cold storage
C.Powder coating: a type of coating that is applied as a free-flowing, dry powder(indoor/outdoor storage)
5, What is the loading capacity?
In general, we have light duty(100~300kg) model,medium duty(400~800kg) model and heavy duty(1000~1700kg)
model available for your choice.
6 Which product can be used in cold storage?
Mobile rack,wire container and roll cage are all widely used in cold storage.
7 I like your design, but couldn't find the right model from the products list, is custom size available?
Yes, we do custom products and projects.
8 I would like to have my own design products and qty is not that big, is it ok?
Yes, we can go with your custom design, no matter small or big qty, however, pls understand the cost will be different.
9 I don't have drawing or picture available for the custom products, could you design it for me?
Yes, we can make the best suitable design for you but do need to know the details, such as
a) dimension b) loading capacity c)stackability d)operation environment
10 What is the minimum quantity I can order?
1x20'GP - qty is variable depend on the size
11 What is your average production lead time?
2-3 weeks against formal order and deposit.
12 Do I get any guarantee from your company?
3~10 years warranty in case that
A) Proper handling during operation, correctly forklift handling while stacking/unstacking
B) Overloading is prohibited
C) Environment request indoor, dry and not humid circumstance, do not contact with any corrosive chemical material
(for zinc plated and powder coated products, no limitation for hot dip galvanized)

---
