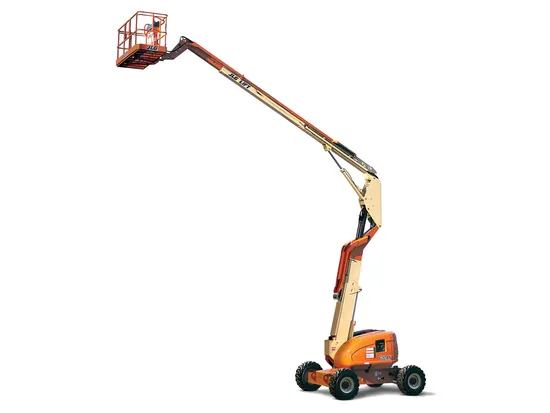

When you've got to work around different angles and crowded job sites, you need the right piece of equipment that gets you straight to the source. JLG engine powered telescopic boom lifts are ideal for work that requires maximum horizontal and vertical outreach. Our telescopic boom lifts take you right where you need to work while providing you with the height and capacity you need. Product Parameters
| Specification Parameters | |
| Mode | 600AJN |
| Platform capacity (restricted) | 227kg |
| Platform capacity (non-restricted) | 227kg |
| Maximum platform height | 18.47m |
| Horizontal reach | 12.1m |
| Equipment dimension | |
| Overall Length | 8.83m |
| Overall width | 2.13m |
| Overall height | 2.54m |
| Dimension of main platform | 0.91*2.44m |
| Rotatable angle of working platform (bucket) | 180°hydraulic |
| Rotation angle of overall unit (continuous) | 360° |
| Jib plus | |
| Extension range | 130°(+70,-60) |
| Turning radius | |
| Turning radius (outside), 4-Wheel drive | 1.7m |
| Running speed | |
| Travelling speed | 6.8km/hour |
| Drive system | Diesel engine,Deutz 2011L04,61kw |
| Gradeability (2-wheel drive) | 30% |
| Auxilary Power (Voltage) | 12V DC |
| Tyre | IN355/55D-6.25 Low profile |
| Others | |
| Hydraulic oil tank | 115.83L |
| Fuel oil tank | 113.56L |
| Overall weight | 10977kg |
Our company is mainly engaged in various aerial working platform. Please view our website: http://josinli.en.made-in-china.com/product-group/lbPxdtVuVUrm/Boom-lift-catalog-1.html
