Totally Enclosed Lifeboat a Electric Arm Life Boat Davit

Product Description

4.5m F.R.P rescue boat 4.5M FRP rescue boat with inboard diesel engine for 6 persons
AGI GROUP provides a series of totally enclosed lifeboats for ocean-going tanker and cargo.
All the Totally enclosed lifeboats / Rescue Boat have their own advantages,can meet customer needs of different projects FEATURES AT A GLANCE Main Features
√ Design and test based on the latest IMO/SOLAS Rules(MED 96/98 EC)
√ Cargo Version and tanker Version to meet different demands
√ New hooks according to MSC.320(89) & MSC.321(89)
√ Seat design can meet the weight of 100Kg per person
√ Max. Capacity of 150 persons lifeboat is also available for your choice PRODUCT CONFIGURATION Specifications Of 4.5m Rescue Boat
FRP Rescue boat and fast rescue boat are powered by Outboard engine or Inboard engine,and can be customized with single arm turning davit or "A" type davit.
FRP Rescue boat and fast rescue boat,6-15 persons
IACS Class of the Rescue Boat : RINA,ABS,BV,DNV,GL,KR,LR,NK,CCS etc.
The main rest on for compilation,of the Rescue Boats
1. Amendments to the international convention for the safety of safety of life at sea,1974;
2. International life-saving appliance LSA code,218(82) ,MSC.272(85).
3. 81(70),MSC.226(82),MSC.274(85)The resolution for maritime safety committee;
4. Nation calibratefor F.R.P. material;
Function and useful confines
(1) Function:By mean of recovery for persons in water and collect life raft ;
(2) Useful confines:Max. three class sea state Details Data of the Rigid Rescue Boat

Item	Specifications of Rescue Boat
Name	4.5m Rigid Rescue Boat
Total hight	2.40m
F.R.P length	4.50m
F.R.P breath	1.86m
F.R.P depth	0.85m
Capacity	6 Persons or 6P
Empty boat weight	845kg
Full load weight	1340kg
Loading temperature	-30~65ºC
Working temperature (sea water)	-1~32ºC
Speed(full load)	≥6 knots
outside colour	International orange
Engine type	25HP Mercury Outboard Engine
cooling method	water cooling
start method	Manual

Models of the Totally Enclosed Lifeboat
Note: "C" means Cargo Version of life boat
"F" means Tanker Version of lifeboat

Model	Dimension (m)	Dimension (m)	Hook Distance (m)	Total Height (m)	Total Weight (kg)
AG50CA/FA	5.00x2.20x1.20	27	4.60	3.00	4326/4646
AG65CA/FA	6.50x2.30x1.20	40	6.10	3.10	6300/6595
AG70C/F	7.00x2.70x1.10	51	6.60	3.10	7111/7425
AG80CA/FA	8.00x2.85x1.20	72	7.60	3.10	9260/9598
AG85CA/FA	8.50x3.15x1.20	85	8.10	3.10	11137/11468
AG85CB/FB	8.50x3.20x1.20	100	8.10	3.195	12334/12750
AG93C/F	9.30x3.45x1.30	106	8.90	3.35	13810/14220
AG102C/F	10.28x3.50x1.30	130	9.85	3.35	15375/15775
AG117C/F	11.70x3.55x1.30	150	11.33	3.40	18190/18600

Packing of Enclosed Lifeboat 150 Persons enclosed lifeboat ABS Certificate Different Color Of lifeboat Davit As your demands(Free Charge) SALES AND SERVICE NETWORK Exhibition Of Enclosed Lifeboat
Why you choose us
AGI GROUP located in Chongqing which is among the largest industrial and commercial cities
in China,and found in the early 2003's. AGI has grown to be one of the global leaders in marine equipment industry,focus on a wide range,TEMPSC(Lifeboat) c/w davit appliance,marine prevention equipment(STP,OWS,Incinerator), Life-saving Appliance(LSA) &Fire-fighting Appliance(FFA),marine mooring equipment etc.for offshore vessels,offshore service and oil rigs. Certified by IACS(International Association classification societies) Class, such as CCS, DNV, ABS, BV, LR, RINA, NK, KR and RS etc. AGI products have been sold to many world-renowned ship owners, ship builders and ocean engineering projects, etc.
AGI offers complete system design,engineering,production,testing and lifelong service for all our products.Our well proven design ensure trouble free operations in harsh conditions and high reliability with a minimum of service required.
All the time,"Client First, Service Best" is our principle,providing them with strong support and fulfill all requirements for reliable and operational friendly equipment.Our mission is to make ship operations Greener, Safer and More Economical. Successful Project Our 25 persons capacity enclosed lifeboat in Maritime Training Center Totally Enclosed Lifeboat in Vessel Fire-proof Type F.R.P Enclosed Lifeboat in Offshore or Platform
Related Products For Totally Enclosed Lifeboat 1. Gravity luffing arm davit For Gravity lifeboat
This type is lowering lifeboat and rescue boat depending on boat self weight, and recovering the lifeboat and rescue boat using electric boat winch. the appliance is traditionally the most usually used life-saving and escape system that is safe and reliable.
2. The launching appliances for free-fall lifeboat
The launching appliances for free-fall lifeboat are specialized equipment for launching and recovering free-fall lifeboats.

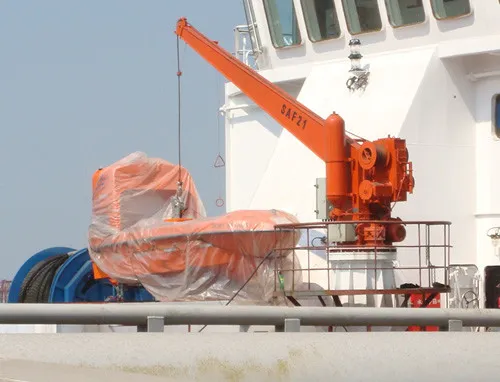

3. The Single Arm Slewing Boat/Raft Davit for rescue boat or liferaft The Single arm slewing boat/raft davit is mainly used for lifting and lowering rescue boat, and also for lowering life raft.
Additionally, it is also acted ad crane bassed on client's requirement.
4. Platform davit is installed on offshore platform
Platform lifeboat davit which is lowering lifeboat and rescue boat depending on boat self weight, and recovering the lifeboat and rescue boat using electric boat winch. It's structure is simple and performance stalbe and reliable.
5. Rescue Boat lifesaving appliance("A" Type)
A Type Davit For Fast Rescue Boat,this lifesaving appliance is a special equipment used on board for launching and recovering a fast rescue boat. This appliance is provided with wave compensation unit, which meet with requirement for use on board the vessel.
6. Lifeboat winch and Release mechanism of lifeboat / Rescuse boat
Main Features The Lifeboat winch driven by electric motor belongs to a short time working equipment. The boat winch is of two kinds of structures, left-hand and right-hand boat winch which are symmetric. It can be suitable for arranging on the parent ship whose deck are symmetric. The boat winch is of the functions of hoisting boat by electric, lowering boat by gravity and hoisting boat by manual as well as manual quick lowering device for empty hook. The boat winch is provided with a manual driving unit which can automatically separate, and a interlocking switch. It can avoid the personal injury caused by mis-operation to the maximum. SIMILAR PRODUCTS Totally Enclosed Lifeboat Davits
* Gravity Luffing Arm Type Davit
* Hydraulic Luffing Arm Type Davit
* Telescopic Type of Lifeboat
* Platform Davit For Offshore Life boat
* Connecting Rod Type Davit of enclosed lifeboat
* Gravity Overhead Rolling Type Davit Of Lifeboat Certifications IACS APROOVED FOR ALL OUR ENCLOSED LIFEBOAT Requirements Of Totally Enclosed Life Boat :
SOLAS 74 Convention as amended,Regulations III/4,X/3,III/21,III/31 and III/34
IMO Res. MSC. 48(66) amended by MSC.207(81),MSC.218(82),MSC.272(85) and MSC.320(89)
IMO Res. MSC. 36(33) -(1994 HSC Code)8
IMO Res. MSC. 97(73)-(2000 HSC Code)8
IMO Res. MSC. 81(70) amended by MSC.200(80),MSC.226(82),MSC.274(85) and MSC.321(89)
IMO MSC/Circ. 1006 and IMO MSC/Circ. 98
Our Equipment can meet the IACS (International Association Classification Societies) Class, such as CCS, DNV, ABS, BV, LR, RINA,NK, KR and RS etc.
Our mission is to make ship operations Greener, Safer and More Economical. Contact our team WORLD WIDE SERVICE SYSTEM Just yours a telephone or an E-mail,we can know your demand in the shortest time.
Our specialized engineers and technical personnel will reply and satisfy your request soonest and rapidly provide technical explanation,all kinds of parts and accessories.
FAQ Q1:Do you have the IACS Class Certificate ABS?
A1:Sure,our team had got all the IACS Class Certificate,such as ABS,RINA,EC,BV,NK,RS...
Q2:What is your team good at ?
A2:we can dispatch all the goods you need,save the shipping cost for our clients.
One stop solution for our clients and professional exporter.
Q3:How about the payment?
A3:We can communicate with each other,and get the best way.usually 30%TT (Telegraphic Transfer ) as deposit,70%TT before shipment.
Q4:Would you please help to apply the CO ( Certificate of origin of the lifeboat )?
A4:Sure,if you need,we can apply the CO,form E. etc for our clients.
Q5:How long of the lifeboat's guarantee ?
A5:usually 12 months for non-human damage factor.If any assistance,welcome to back our team. Free Fall Lifeboat 4.9m with davit Our Lifeboat System -Free Fall Lifeboat. We can manufacture the 4.9m free fall lifeboat for 20 persons and 6.7m free fall lifeboat for 33 Persons. Match the Launching Appliance of Free-Fall Life Boat. Rescue Boat 4.5m with davit We offer Rigid Rescue Boat 6 Persons and single davit for rescue boat with 25Hp outboard engine or inboard engine Fast Rescue Boat with davit We offer Rigid Fast Rescue Boat 9 Persons max 15 Persons and single davit or A type Davit for Fast Rescue boat with 60Hp outboard engine or inboard engine

---
