En 12811aluminum Frame Steel Construction Cuplock System Kwikstage Ringlock Formwork Facade Scaffold

Product Description

Scaffolding one-stop Solution
China Wuxi Total Scaffolding Manufacturer. Wuxi factory and Tangshan Factory
Main products: Ringlock, Cuplock, Octagonlock, Kwikstage, Frame, Haki, Aluminum tower, Shoring prop, Couplers.
Ringlock scaffolding is a mature system. It mainly composes of standard, ledger, brace, plank and so on.
Ringlock node is revolutionary, so makes it faster and easier erection than any other scaffolding. When it comes
to connect way, it uses the wedges, ledger end and rosette to lock the vertical and horizontal together by hitting the wedges. The rosette have eight holes, four fix ledger and four fix brace, much better than other scaffolding. Each ledger and brace is independent. So it can make the ledger and brace quick locking and fastening tightly.
Technicial parameter

Item Name	Materials	Weight	Surface treatment
Standard/verticals 050	Q235, Q355 48.3*2.75mm 48.3*3.0mm 48.3*3.2mm	2.96kg	Hot dip galvanized Powder coated Painted
Standard/verticals 100		5.33kg
Standard/verticals 150		7.69kg
Standard/verticals 200		10.06kg
Standard/verticals 250		11.86kg
Standard/verticals 300		14.78kg
Item Name	Materials	Weight	Surface treatment
Ledger/Horizontal 073	Q235, Q355 48.3*2.75mm 48.3*3.0mm 48.3*3.2mm	3.34kg	Hot dip galvanized Powder coated Painted
Ledger/Horizontal 1090		4.52kg
Ledger/Horizontal 1400		5.53kg
Ledger/Horizontal 1570		6.09kg
Ledger/Horizontal 2070		7.73kg
Ledger/Horizontal 2570		9.37kg
Ledger/Horizontal 3070		11.01kg
Item Name	Materials	Weight	Surface treatment
Diagonal/brace 073*200	Q235, 48.3*2.5mm	5.34kg	hot dip galvanized Pre-galvanized
Diagonal/brace 109*200		5.81kg
Diagonal/brace 140*200		6.23kg
Diagonal/brace 207*200		7.56kg
Diagonal/brace 257*200		8.39kg
Diagonal/brace 307*200		9.22kg
Item Name	Materials	Weight	Surface treatment
steel plank/deck 1090	Q235, 1.2mm 1.5mm,1.8mm	8.58kg	Hot dip galvanized Pre-galvanized
steel plank/deck 1400		10.85kg
steel plank/deck 1570		12.48kg
steel plank/deck 2070		15.65kg
steel plank/deck 2570		18.91kg
steel plank/deck 3070		22.15kg
Item Name	Materials	Weight	Surface treatment
Hop upsl/bracket 1	Q235, 48.3*3.2mm	2.5kg	Hot dip galvanized Powder coated Painted
Hop upsl/bracket 2		6.0kg
Hop upsl/bracket 3		9.0kg

Cuplock scaffolding
Kwikstage scaffolding
Frame scaffolding
Shoring prop
Aluminum scaffolding tower

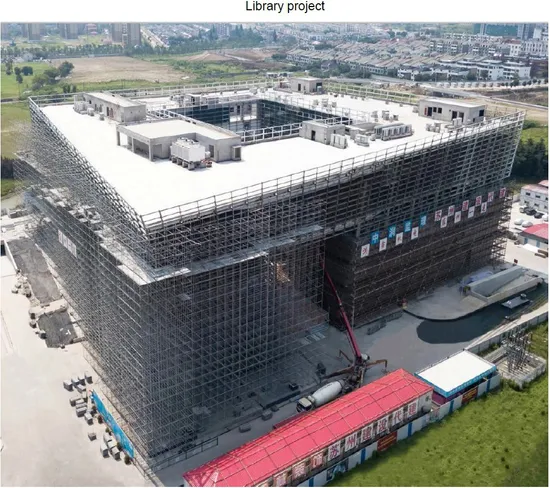

Scaffolding Project Case
Load test
Scaffolding Certificate
1. Q: What is your product range? A: Ringlock, Cuplock, Frame, Couplers, aluminum scaffolding tower, scaffolding accessories.
Q: What is MOQ? A: Usually we don't have a MOQ, but it depends on the product you are looking for.
2. Q: What kind of payment term do we accept? A: West Union, T/T and L/C.
Q: Can I get samples? Yes, we offer free samples on most itmes if it is not too heavy or big. freight collect
Q: How is your factory's production capacity? A: Over 500 tons per month.
3. Q; Where have you been exported? We have exported to Asia, South Ametica, Europe, Africa and Middle east.
Q: What kind of international certificate do we offer? A: CE certificate and SGS test report.
Q: How can you assure the welding quality? A: We have made the flaw detection test which can prove the good welding quality.
4. Q: What is production time? Usually it takes 25-30 days for the first container,production goes faster after the first container once
all raw materials are ready.The more the faster. Partial shipment can be arranged if requested.
5. Q: How does your factory control quality?
A: Our strict quality control system ensures all products well made step by step. All the raw materials are bought from professional
steel manufacturers, with Mill Test Certificates offered. Our quality control persons inspect and monitor the whole process from
raw material, cutting, pressing, welding, matching, surface finish, finishing process, packing, container loading and transportation.
6. Q: How is the bearing capacity of your scaffolding?
A: It depends on which kind of scaffolding, scaffolding sizes, and the setup plan. We have many test reports for your reference.
7. Q: How High can your scaffolding reach to?
A: Normally, we suggest our client to setuo the scaffolding maximum reach to 30 meters. But some of our customers setup our
scaffolding reach to 50 meters. According to safety documents, every 20 meters, we need to make a steel platform where the
scaffolding can be setup continually.
8. Q: What is your after-sale service? A: All the after-sale problems will be solved based on mutual friendly communication.
In case of quantity shortage,the detailed certificates should be sent to our side in seven days after the goods arrive at your
warehouse. In case of quality discrepancy,such as problems caused by raw material,welding,or surface finish,the detailed
certificates should be sent to our side.If it is confirmed caused by our side for the above two mentioned situations,the loss
will be compensated as the new goods sent to your side in next order.

---
