Agricultual Small Vikas Industry Soil Loading Heavy 3 Point Automatic Rock Tractor Mounted Stone Collection Burier Picker Machine for Farmland with Teeth

Product Description

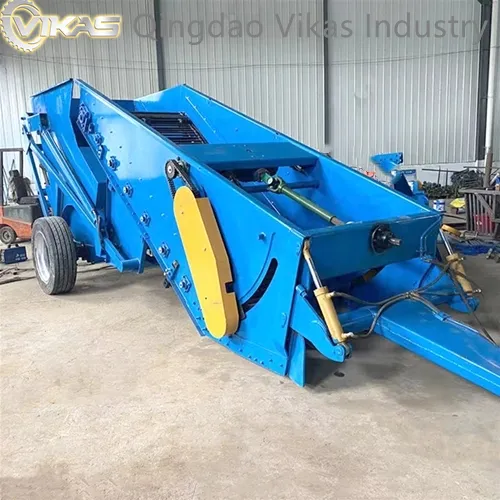

VIKAS 12JS Heavy Stone Picker

VIKAS 12JS Stone Picker
Wasteland reclamation stone picker
Easier to enter the soil, wide range of applications, quick stone cleaning.
Usage Scenarios: Stone picking in large areas of farmland, construction waste removal, mining area reclamation, homestead reclamation, debris flow impact repair.
Advantages: high stone picking efficiency and suitable for different soils.
Solve the problem of difficulty and high cost of cleaning stones in the soil.
Application:It can be used in sandy soil, plains, hills, mountains and other terrains to clean stones in farmland soil and stones on house demolition floors.

Model	12JS-130	12JS-160	12JS-190
Dimension(mm)	6850x2380x2460	7000x2700x2650	7000x2700x2700
Working Speed	1-2km/h	2-3km/h	4km/h
Picking Device	digging tip shovel+rock tooth roller
Working Width	1300mm	1600mm	1900mm
Working Depth	100-250mm
Separation Device	Grille screen
Conveying Device	Grid Screen Conveyor Chain
Collecting method	Stone collecting box
Box volume	3m³	3.6m³	4.1m³
Discharge method	Fluid pressure
Tire model	295/60R22.5	445/45R19.5	445/45R19.5
Wheel Track	1980mm	2040mm	2040mm
Supporting Tractor power	140hp-220hp	150hp-220hp	>200hp

Advantages:
1.The use of thickened alloy conveyor chains reduces stone blockage and enables faster soil and stone separation.
2.Super-hard steel soil entry shovel with replaceable tooth head and super impact resistance.
3.Floating stone picker avoid stone accumulation.
4.Well-known brand hydraulic control system.
Easy to operate and high work efficiency.
5.Special high-strength engineering tires, long tire service life and safer operation.
Workshop overview
Packaging & Shipping
Certifications

---
