Vacuum Evaporator Concentration Alcohol Tank Ethanol Solvent Recovery Distilling Tower

Product Description

Vacuum Evaporator Concentration Alcohol Tank Ethanol solvent Recovery Distilling Tower
Solvent distill column is used to separator and distill the different solvent compenet from the solvent .
How does the Solvent distill column working principle?
Because the boiling points of each component in the raw material are different, so as long as through multiple partial condensation and partial evaporation, the separation between different components can be realized. In detail, the multicomponent solution is introduced into the stainless steel rectifying tower and heated, then some liquid will be evaporated. Because the boiling points of each component are different, of course, the component with low boiling point will evaporate first, and when the steam is cooled, part of it will condense and then change into liquid.
Solvent distill column operation:
In order to ensure the distillation effect, the top of the stainless steel distillation tower must have downflow liquid, and the bottom of the tower kettle must have continuous rising steam, and make each layer of the tower plate gas-liquid contact, so as to carry out mass and heat exchange, realize partial evaporation and partial condensation. In this way, the components with low boiling point in the rising steam become more and more concentrated, and the required pure gas can be obtained. However, the components with high boiling point in the downflow liquid become more and more concentrated, which is the way to get pure liquid.

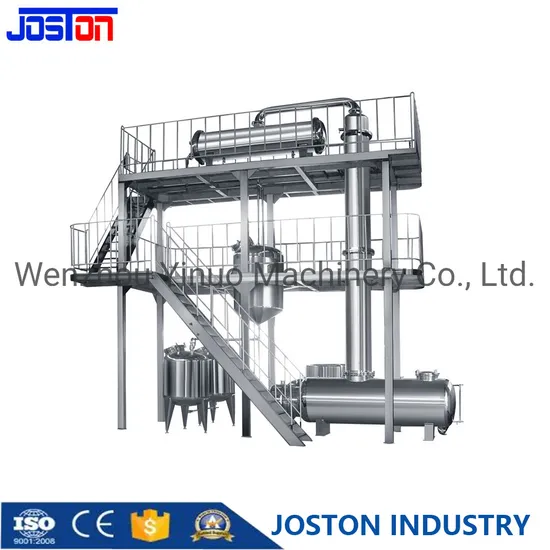

The equipment including the following unit :re-boiler, tower column,condenser ,sub-cooler,solvent collection tank and pipeline

Model Item	PD200	PD300	PD400	PD500	PD600	PD800
Tower Column diameter mm	200	300	400	500	600	800
Tower height mm	7200	7200	7200	7200	7200	9000
Re-boiling tank volume L	600	1000	1500	2000	3000	4000
Feeding concentration for alcohol	30%-50%
Output concentration for alcohol	93%-95%
Output capacity for alcohol kg/h	60-80	90-100	120-150	200-300	350-400	550-600
Dimension M	2.5X0.8X10	2.6X0.9X10	2.8X1.0X11	3.0X1.0X11	3.5X1.4X12	4.2X1.714

---
