Small Scale Toilet Paper Making Machine Cost

Product Description

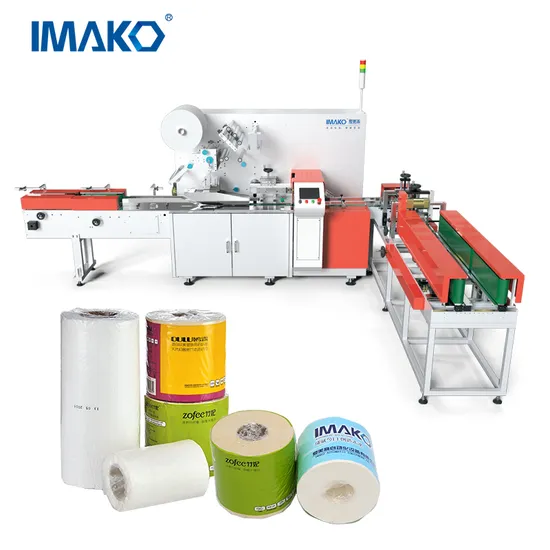

IMAKO TP-R220M Toilet Paper Kitchen Roll Production Line Manufacturing Packing Machine

Max. Work Speed:	200Pack/min
Total Power:	12KW
Pack Range(mm):	Length (L): 80-220 Diameter (D): 80-130

Product Description TP-R220 toilet paper roll wrapping machine is suitable for automatic packaging of either core or coreless toilet paper rolls and kitchen tissue rolls.
It can accomplish automatic operations of tissue roll arranging, roll feeding, film feeding, film cut off and tissue roll diverting by using servo drives.
TP-R220M roll paper packing machine will help different clients to achieve their different packing styles and and help their roll paper automatically tidy, place, storage, distrubite, conveyor and pack.
1. It automatically achieve processes from feeding, packing to side sealing. So that it prevents the second pollution from hand operation.
2. Four servo control system making packing processes precise and stable.
3. Large PLC human-machine interface is easy for operation.
4. The transmission system mainly is made up of synchronous belt wheels and chains, which is easy for maintain.
5. The toilet paper machine is both for cored rolls paper and non-cored rolls paper.
6. This machine stably packing rolls at 200 packs per minute in production field.
5. Standard functions equipped: Inching function, line function, PLC temperature control function, diameter error detection and alarm function, length error detection and alarm function, auto seal open/close function, film stop feeding when no material function.
Functions of The Toilet Roll Wrapper Machine:
A. Prevent air pack function saves waste and reduce cost. If there are no rolls, main machine automatically stops; When rolls come in, toilet paper machine automatically runs. Thus you can save packing material and cut down production cost.
B. Prevent cutting rolls function. Machine has self-detection system. If rolls are misplace, toilet paper machine automatically stops so that knives cann't cut them. Thus you save rolls paper and reduce cost.
C. Electric self-adjust cutting knife speed function. You don't need to adjust speed by your hand. It's very safe and conveinent.

Features:* Fast Speed (Up To 200PPM)* High Efficiency
* Simple Operation* High Flexibility to Various Specifications* Quick Size Changeover* Complete Operation Configuration* Easy Maintenance* Low Operation Cost
* Labor Saving
Product Parameters

TP-R220 toilet paper machine main parameter configuration
Design packing speed	220packs/min
Stable packing speed	≤200 pack/min	relate to product size
Maximum flm width(mm)	430
Cutter configuration	Double cutters
Film install structure	Air shaft
Machine weight(KG)	1800
Machine noise(db)	≤78dB
Percentage of pass	≥97%
Efficiency	≥85%
Power supply	380V/60Hz
Packaging film material	BOPP,Cpp
Film thickness	0.018-0.03

Example of capacity calculation method
toilet roll gram weight 150g/roll, efficiency factor 90%, production time 8h, production speed 180rolls / min
150g/rollX8(hour) X60 (minute) X0.90 (efficiency)X 180rolls/ min= 11664kg = 11.6tons
(Note: The above capacity calculations are for reference only)
Tags toilet paper production line toilet roll multi-pack wrappers hand towel packing machine tissue paper production line tissue packaging machine Detailed Photos

Some of the spare parts:
Bottom knife
Surface knife
Pushing rod
Instruction books of TP-R220 machine,Mitsubishi Inverter, Mitsubishi servo drive etc
If you need more information/have any problem, we are happy to welcome you CLICK HERE to contact us! Application No matter you are producing toilet roll or kitchen paper, this machine can adapt to many specifications of different production lines(only need to click the botton over the screen) and complete specification conversion quickly.
Company Profile IMAKO is a company entirely focused on the manufacture of automated packaging equipment for household paper industry. We always aim at developing user-oriented innovative solutions for worldwide tissue paper convertors to solve their tissue paper production and toilet paper packaging needs. To become a global packaging machine manufacturer, we also provide full automatic toilet paper production line, tissue napkin production line, handkerchief production line, hand towel production line,with rewinder, folder, cutter, single packer, bundling packing machine, case packing machine and robot palletizer. we also provide packaging solutions for personal care products like baby diaper packaging machine, wet wipes packaging machine and sanitary pad packaging machine are built to deliver easy operation, high productivity, quick size changeover and simple maintenance.
Our mission is to innovate our technology to meet the future market changes and challenges, constinuously improve efficiency to help customers solve production problems. From design, production, solutions to services, we strive to provide you with satisfactory experience and to become your long-term partner. We remember that without the trust of our customers, we would not be here we are today.
IMAKO has been dedicated to household paper packaging machinery industry for years, and has accumulated much experience. Value-added service to our client is our sole goal, mutual benefit is our base for development, solution is our answer to project.

Paymentterm:T/T,L/C,30% down payment when placing your order, 70% balance payment before shipment.

Delivery: It depends on the machine models and your requirement on packing sizes.Usually within 30 days of Off Season , within 50 days of peak season upon receiving deposit

After service: Seller would repair or replace the damaged parts free of charge caused by the machine poor design or manufacturing defects within this period.Guarantee period is not applicable for the consumables and once damaged, buyer can purchase the consumables from the seller at reasonable prices.
We would systematically train your engineers about the operation, maintenance and supervision and share the knowledge and experience regarding the machine operation and maintenance by fax or at each visit.
If buyer need our technician to fix the machine abroad,buyer shall be responsible for all costs of service like airtickets,accommodation and local transportation.
Besides buyer need paid for the technician USD50/person/day as salary when our Technician going to your country.
FAQ

Q 1. Where is your factory located?

A: Our factory is located in Shantou city,Guangdong province,China.Which is a beautiful coastal city in the South-eastern of China.The airport name in our city is Jieyang Airport,airport code SWA and high-speed railway station is Chaoshan Station.It's very convenient to come from Guangzhou city or Shenzhen city.

Q 2. How to Guarantee transaction security?

A: Before delivery, we will send the pictures and videos to you to check the quality. Or you could arrange checking on your own. Also license and certificate could be provided for checking.

Q 3: What technical support can I get during the transaction?

A: We offer online technical support at any time you want. Instructional videos, the way of daily commissioning and maintenance also wil be provided. If you need installation service, our technicians can go abroad but this is not free. During warranty you could replace the failed parts for free.

Q 4: I want to upgrage my machine, could you design the right equipment for me?

All of our machines can be customized. We would combine our technical level with your actual needs,budget, etc to give you the suitable solution.
