PP PE Pet PVC Waste Plastic Recycling Extruder Plastic Granulation Making Granulating Production Line Granulator Machine

Product Description

Product Description
Product Parameters
Feature:
PE PP recycling granulating machine is special equipment for the plastic film/bags recycling granulating, it equipped with compacting machine which pre-compact the film into smaller granules, then easily feed into screw barrel of extruder, its efficiency is high and can improve production capacity it has vacuum exhausting system on extruder barrel which can fully vent the moisture in the material and hence the final granule quality will be very perfect. end of screw barrel, it equipped with double station fast speed hydraulic non -stop screen changer which can efficiently filter out the dirty in the plastic melt. the pelletizing adopts water cooling pelletizing which is easier to operate, and the shape and appearance of granule is good.
sj-120 double stage plastic recycling machine

yield	150-200kg/h
Applicable voltage	380v/50hz/3ph(can be customized according to customer requirements)
screw	First stage	Diameter: 120mm, length:2400mm, material: 38CR with vent, exhaust screw;
	Second stage	Diameter: 100mm, length:1200mm, material: 38CR with vent, exhaust screw;
Gear box	ZLYJ:First stage :200;;Second stage:173
Motor	First stage :37KW;;Second stage:15KW
Inverter	First stage		Adopt international famous brand: HOLIP 22kw;
	Second stage		Adopt international famous brand: HOLIP 15kw;
screen changer	First stage		Hydraulic upper and lower plate size: 220mm * 220mm; working pressure: ≤ 35MPa
	Second stage		Hydraulic upper and lower plate size: 220mm * 220mm; working pressure: ≤ 35MPa
Control box	Temperature control display:10Zone; Schneider and China ZHENGTAI products are used for electrical appliances
Heating	Material: Ceramic;Heating voltage: 220 V / 50 Hz;Heating power: 2kw-3kw;
Hopper	Open parallel hopper (without force feeder)
Cooling system	Size :2500*400*350mm Material :Stainless
Fan	1.5KW medium voltage motor; stainless steel water plate
Cutter system	Using 14 alloy hobs; grain size: 3-4mm; motor: 2.2kW;
oil box	Motor: 1.5kw, solenoid valve starts;hydraulic oil: 46 or 68;Oil storage capacity: 40L;
Random accessories	Tool box (button switch, heating rod, electric couple, scissors, shovel, pliers, etc. are randomly distributed)
Total Price

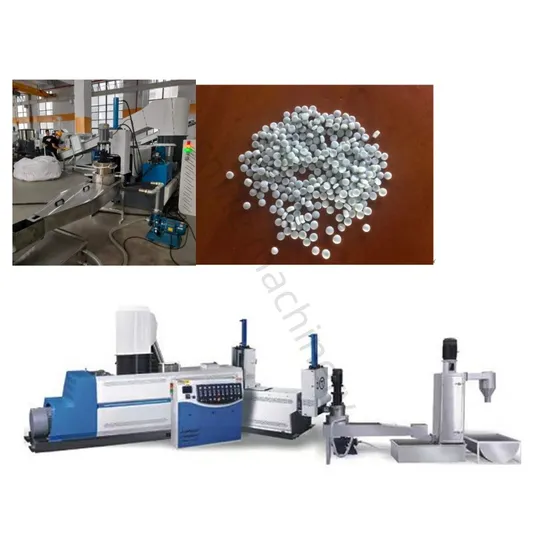

Machine photo
force feeding
first stage
Hob grain cutter
second stage
Electric cabinet
Company Profile

Packaging & Shipping

Certifications

FAQ
Q: Are you manufacturer or trading company?
A:We are the manufacturer and have our own workers and factories.
Q:How long is the warranty period?
A: All of our products have 2 year warranty and whole life maintance
Q: What's the main market of your company?
A: We have customers all over the world
Q: What's your delivery time and payment Terms?
A: Normally,it need about 10-30 days.The exact time depends on your quantity.The payment terms always 30% deposits,70% to be paid before shipment.
Q: What package do you use for the product?
A:Be Coated with anti-corrosion oil, and covered with plastic film, wooden box package need extra cost.
Q: Does your factory provide installation service?
A:Our engineer can go to customer factory to installation . buyer should prepare materials used to testing the machine in advance and should be responsible for the cost of supplier's technician, including round air tickets, visa cost, accommodation and salary 120-150USD/Day per person since the day start out until the day arriving at factory.
Q: Can we visit your machine operation in your factory?
A: Welcome to you go to our factory to see the machine operation.
Q: Where's your factory located? How can we visit there?
A: We are in Zhixin industry Zone, Ruian City,Zhejiang province,China.
You can by air to Wenzhou airport and by High-speed train to Rui'an Station
