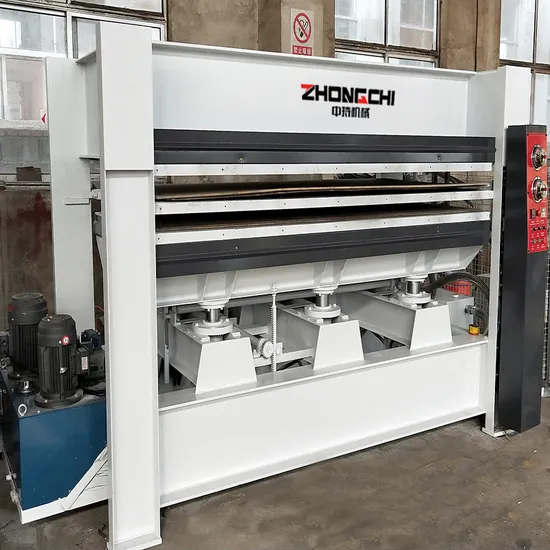

Woodworking Hot Press Veneer Press Hydralic Oil Press Hot Press Machine

Product Description

Detailed Photos

Product Parameters

Model	BY214*8/20(1)	BY214*8/20(3)	BY214*8/20(5)
Nominal pressure	120T	120T	200T
Dimension of hot platens	2500*1300*42mm	2500*1300*42mm	2500*1300*42mm
Service opening	300mm	80mm	80mm
Layer	1	3	5
Number of cylinders	6	6	6
Diameter of cylinders	130mm	130mm	130mm
Power	7kw	7kw	7kw
Heating Power(thermal oil furnace)	36kw	36kw	55.5kw
Overall size	4600*1800*2100mm	4600*1800*2100mm	4600*1800*2500mm
Net weight	5500kg	7500kg	11500kg

Other Hot Press

Packaging & Shipping

Feedback

Certifications

FAQ
Q1: What is the brand name of the Machine?
A1: The brand name of the Woodworking Machine is Zhongchi Brand
Q2: Where is the Woodworking Machine manufactured?
A2: The Woodworking Machine is manufactured in Qingdao,China.
Q3: Is the Woodworking Machine certified?
A3: Yes, Have CE certification.

Q4:I am a fresh man for this machine,what kind of machine I should choose?
A4:Very easy to choose, just tell us :
1. the work you want to do ?
2. the maximum size of your material ?
then we give you perfect solutions and suggestions.

Q5:When I got this machine, but I did not know how to use it,What should I do?
A5:We will send tutorial video and English version manual with the machine, If you still have some doubts,we can talk by telephone or Video. Or even send our engineers oversea to help you.

Q6:If some problems happened to this machine during warranty period,what should I do?
A6:We will supply free parts in machine warranty period if machine have some problem, While we also supply free after-service,so any doubts, just let us know, we will give you solutions.

Q7:What is the MOQ?
A7:MOQ for our products is 1 set machine, we could send it to the nearest port to you.

---
