High Quality Wet Mix Shotcrete Machine for Sale with Competitive Price

Product Description

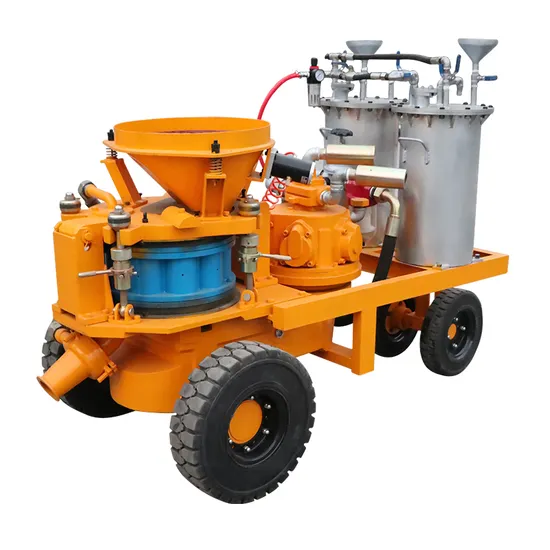

LSZ3000A High quality wet mix shotcrete machine for sale with competitive price
1. Description:
LSZ3000 shotcrete machine is a universal concrete spraying machine for the processing of wet or dry mix. LSZ3000A due to its full pneumatic driven unit, for the required anti-explosion applications, such as coal mining, tunnel and underground engineering, this unit is perfect and specific one.
The machine is suitable either for manual spraying or by means of a robotic arm.
Basic: Electric drive can be combined with tyre chassis.
Extended (optional): Air motor drive or diesel drive combined with Skid or Rail-wheel
2. Application:
LSZ3000 is developed for the application of shotcrete in tunnel building, mines and slopes. This machine has been designed especially for fibre spraying. And the dosing unit is combined with this machine.
3. Features:
It can both for dry and shotcrete concrete spraying.

Drive type	Pneumatic type
Rated output	5m 3 /h
Max. horizontal conveying distance	35m
Max. aggregate size	Dia.15mm
Concrete slump	8~15cm
Conveying hose	Dia.50/65mm
Operating air pressure	0.2~0.6MPa
Air consumption	22m 3 /min (12+10)
Loading height	1.17m
Rotor Rev.	11r/min
Rebound	≤10 %
Air motor power	8kW
Dosing pump model	BHA530 Dosing pump
Dosing pump rated pressure	0.5MPa
Dosing pump output	0~100L/h
Overall dimension(L×W×H)	1950×1050×1360mm
Weight	1200Kg

---
