Pet Bottle Plastic Recycling Machine/Cost of Plastic Recycling Machine

Product Description

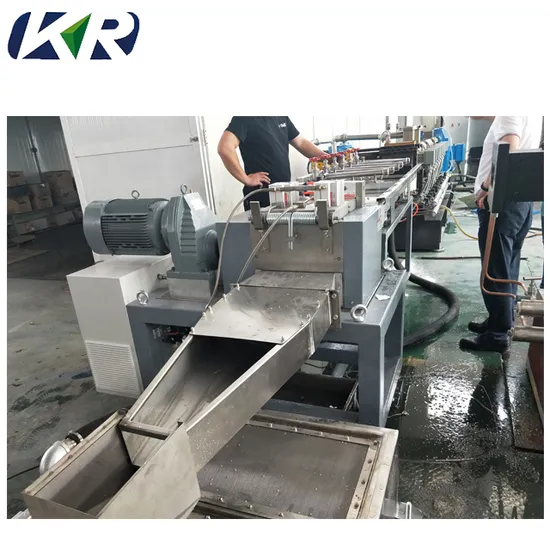

plastic recycling twin screw extruder
Advantages of plastic recycling twin screw extruder compared with single screw extruder
Higher production capacity.
Energy and time savings as pre-drying and crystallization are omitted.
High quality of the end product which does not become yellowish.
High flexibility because formula and colors can be changed very quickly due to the good self-cleaning behavior of the plastic recycling twin screw extruder.
Much simpler logistics because pelletized new product and different regenerates can be processed together.
Raw material:
If your material are like these, and you do not want to spend too much on the recycle machine. Our TSE series plastic recycling twin screw extruder can be a good choice.
Application
Most recycling tasks make granules as a mediate product. For some materials, either pelletizing system or sheet extrusion downstream can be equipped after the plastic recycling twin screw extruder. In the case of PET bottle flakes recycling it can produce PET pellets and it can make PET sheet directly. This is a branch of our direct extrusion technology!
Auxiliary machines you may need:
The plastic recycling twin screw extruder line with belt conveyor, crusher, extruder, auxiliary equipment. The line with characteristics of high output, low energy dissipation, labor-force saving, and high quality pellets, is an ideal equipment for plastic recycling twin screw extruder.
Plastic recycling twin screw extruder process
According to the cleanliness of raw materials and actual production needs, plastic recycling twin screw extruder with water ring pelletizing or strand pelletizing can be selected to match different raw materials.
PET raw material feeding TSE series plastic recycling twin screw extruder Degassing Roots pump and special designed filter Special designed water bath Air blower Strand pelletizer
Roots pump for Plastic recycling twin screw extruder
Compared with other types of vacuum pumps, roots vacuum pump has the following advantages:
1) There is no gas compression in the pump chamber, and there is a gap between moving parts, so it is not sensitive to dust and steam in the pumped gas, so condensable steam can be extracted.
2) The moving parts in the pump chamber do not need oil lubrication, which can avoid the pollution of oil steam to the vacuum system and is conducive to obtaining oil-free vacuum.
3) The utility model has the advantages of simple structure, low noise, no contact between moving parts in the pump cavity, no damage and low maintenance cost.
4) start quickly and reach the limit vacuum in a short time.
New design cooling and pelletizing line for Plastic recycling twin screw extruder
Special designed diehead which can effectively filter impurities
Technical data of plastic recycling twin screw extruder:

Mode	Diameter (mm)	L/D	Screw rotary speed (r/min)	Motor power (kw)	Torque (N.m)	Capacity (kg/h)
TSE-65B	62.4	32-64	600	90	716	250-300
TSE-75B	71	32-64	600	132	1050	350-550
TSE-75D	71	32-64	600	220-250	1990	500-1000
TSE-95B	93	32-64	600	315	2506	800-1200

---
