Basic Info.
Model NO.
1000D/2 1300D/2 1500D/2 2000D/2
Transport Package
Standard Packing
Specification
1000d/1,1000d/2,1000d/3,1300D/2,1500d/1,1500d/2
Production Capacity
1000 Tons/Month
Product Description
Polyester tyre cord fabric B grade for making fishing net and ropes
Our products cover tire cord fabric packed in rolls and cutting pieces packed in bags. and twist yarn in bobbins. Both undipped with white color and dipped.
The B grade tire cord fabric are all from the big factories which producing tire cord fabric and tire. They produce A grade, some data does not reach standard for tire, so degrade B grade.
All is 2 ply with good twist, is good quality for making fishing net and rope.
Applications:
Mainly used for making fishing net , rope and the kite line.
And also used as the sewing thread for sewing bags, tents, shoes, Sofa, Home Decor etc.
Specification:
1100dex/2, 1440dtex/2 , 1670dtex/2, 2200dtex/2 etc.
Note: The above are general technical specifications, which can be adjusted according to customer' requirements.
Company Profile:
HL Group Ltd is the manufacturer and exporter of tire and rubber hose framework materials for the industrial sector in global market.
It has been professionals in the framework materials for 20 years.
The products covers:
tyre cord fabric for tyre and fishing net,
EE/EP/NN fabric for conveyor belt,
Liner fabric for tyre,
Filter fabric for
Various industries,
bead wire for tyre and hose,
steel cord for tyre,
rubberized tyre cord fabric for tyre and hose,
rubberized steel cord for tyre and hose.
Products are sold to all large tire factory in China and also export to Southeast Asia, Africa, Europe, South America so on.
Our group insist on quality first, customer focus, win-win policy.
Sincerely hope to cooperate with you.
Specification:
Nylon 6 Dipped Tyre Cord Fabric Specification
Item
| 1870dtex/2
(1680D/2) | 1400dtex/2
1260D/2 | 930dtex/2
840D/2 | 2100dtex/2
(1890d/2) | 1170dtex/1
(1050D/1) | 700dtex/1
(630D/1) | 1870dtex/1
(1680D/1) | 1400dtex/1
(1260D/1) | 930dtex/1
(840D/1) |
| Breaking strength≥ | N/end | 279.30 | 215.60 | 137.20 | 313.60 | 90.00 | 50.00 | 137.00 | 107.00 | 70.00 |
| Elongation at | 88.2N | % | 9.5±0.5 | - | - | 9.5±0.5 | - | - | 8.0±0.8 | - | - |
| 66.6N | - | 9.5±0.5 | - | - | 8.0±0.8 | - | - | 7.0±0.8 | - |
| 44.1N | - | - | 9.5±0.5 | - | - | 7.5±0.8 | - | - | 7.5±0.8 |
| Adhesive strength≥ | N/cm | 166.60 | 147.00 | 117.60 | 176.40 | 65.00 | 43.00 | 83.00 | 69.00 | 54.00 |
| Breaking strength difference≤ | % | 3.80 | 3.80 | 3.80 | 3.80 | 5.00 | 5.00 | 5.00 | 5.00 | 5.00 |
| Breaking elongation difference≤ | 6.30 | 6.30 | 6.30 | 6.30 | 7.00 | 7.50 | 7.00 | 7.00 | 7.00 |
| Dip pick up | 4.5±1.0 | 4.5±1.0 | 4.5±1.0 | 4.5±1.00 | 4.2±0.8 | 4.2±1.00 | 4.2±1.00 | 4.2±1.00 | 4.2±1.00 |
| Breaking elongation | % | 23.0±2.0 | 23.0±2.0 | 22.0±2.0 | 23±2.0 | 20.0±2.0 | 19.0±2.0 | 20.0±2.0 | 20.0±2.0 | 20.0±2.0 |
| Diameter | mm | 0.78±0.03 | 0.65±0.03 | 0.55±0.03 | 0.78±0.03 | - | 0.23±0.03 | 0.5±0.03 | 0.43±0.03 | 0.32±0.03 |
| Twist | Primary twist(Z) | Twist/m | 320±15 | 370±15 | 460±15 | 320±15 | TPM/m: 200±15 | TPM/m: 260±15 | 160±10 | 190±10 | 210±15 |
| Second twist(S) | 320±15 | 370±15 | 460±15 | 320±15 |
| Heat shrinkage ≤ | % | 6.00 | 6.00 | 6.00 | 4.00 | 4.50 | 4.00 | 4.00 | 4.00 | 4.00 |
| Moisture ≤ | % | 1.00 | 1.00 | 1.00 | 1.00 | 0.80 | 0.80 | 0.80 | 0.80 | 0.80 |
Polyester Dipped Tire Cord Fabric STD Specification
| NO. | ITEMS | UNITE | 1000D/2 | 1300D/2 | 1000D/3 | 1500D/2 | 2000D/2 | 1300D/3 | 1500D/3 |
| (1100dtex/2) | (1440dtex/2) | (1100dtex/3) | (1670dtex/2) | (2200dtex/2) | (1440dtex/3) | (1670dtex/3) |
| 1 | Breaking Stength (min) | N/end | 140 | 180 | 205 | 205 | 280 | 260 | 305 |
| 2 | Elongation at 44.1N | % | 4.5+1.0 |
|
|
|
|
|
|
| Elongation at 58.0N | % |
| 4.5+1.0 |
|
|
|
|
|
| Elongation at 66.6N | % |
|
| 4.5+1.0 | 4.5+1.0 |
|
|
|
| Elongation at 88.2N | % |
|
|
|
| 4.5+1.0 | 4.5+1.0 |
|
| Elongation at 100N | % |
|
|
|
|
|
| 4.5+1.0 |
| 3 | Adhension(H-test)(min) | N/Cm | 125 | 135 | 140 | 140 | 170 | 165 | 180 |
| 4 | Breaking strength difference(max) | % | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 5 | Breaking elongation difference(max) | % | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| 6 | Dip pick up | % | 3.5+1 | 3.5+1 | 3.5+1 | 3.5+1 | 3.5+1 | 3.5+1 | 3.5+1 |
| 7 | Breaking elongation (Min.) | % | 15+/-2 | 15+/-2 | 15+/-2 | 15+/-2 | 15+/-2 | 15+/-2 | 15+/-2 |
| 8 | Diameter | mm | 0.56+0.03 | 0.61+0.03 | 0.66+0.03 | 0.66+0.03 | 0.75+0.03 | 0.74+0.03 | 0.81+0.03 |
| 9 | Twist | Pingle twist(Z) | T/10cm | 45+1.5 | 40+1.5 | 37+1.5 | 37+1.5 | 33+1.5 | 33+1.5 | 31+1.5 |
| Ply twist(S) | 45+1.5 | 40+1.5 | 37+1.5 | 37+1.5 | 33+1.5 | 33+1.5 | 31+1.5 |
| 10 | Hot air shrinkage 177ºC×2minx0.05CN/dtex(max) | % | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| 11 | Elongation @ Breaking of weft yarn (Min) | % | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
Polyester Dipped Tyre Cord Fabric HMLS Specification
| NO. | ITEMS | UNITE | 1000D/2 | 1300D/2 | 1000D/3 | 1500D/2 | 2000D/2 | 1300D/3 | 1500D/3 |
| (1100dtex/2) | (1440dtex/2) | (1100dtex/3) | (1670dtex/2) | (2200dtex/2) | (1440dtex/3) | (1670dtex/3) |
| 1 | Breaking Stength (min) | N/end | 140 | 180 | 205 | 205 | 270 | 260 | 305 |
| 2 | Elongation at 44.1N | % | 4.5+1.0 |
|
|
|
|
|
|
| Elongation at 58.0N |
|
| 4.5+1.0 |
|
|
|
|
|
| Elongation at 66.6N |
|
|
| 4.5+1.0 | 4.5+1.0 |
|
|
|
| Elongation at 88.2N | % |
|
|
|
| 4.5+1.0 | 4.5+1.0 |
|
| Elongation at 100N | % |
|
|
|
|
|
| 4.5+1.0 |
| 3 | Adhension(H-test)(min) | N/Cm | 125 | 135 | 140 | 140 | 170 | 165 | 180 |
| 4 | Breaking strength difference(max) | % | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 5 | Breaking elongation difference(max) | % | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| 6 | Dip pick up | % | 3.5+1 | 3.5+1 | 3.5+1 | 3.5+1 | 3.5+1 | 3.5+1 | 3.5+1 |
| 7 | Breaking elongation (min) | % | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| 8 | Diameter | mm | 0.56+0.03 | 0.61+0.03 | 0.66+0.03 | 0.66+0.03 | 0.75+0.03 | 0.74+0.03 | 0.81+0.03 |
| 9 | Twist | Pingle twist(Z) | T/10cm | 45+1.5 | 40+1.5 | 37+1.5 | 37+1.5 | 33+1.5 | 33+1.5 | 30+1.5 |
| Ply twist(S) | 45+1.5 | 40+1.5 | 37+1.5 | 37+1.5 | 33+1.5 | 33+1.5 | 30+1.5 |
| 10 | Hot air shrinkage 177ºC×2minx0.05CN/dtex(max) | % | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 11 | Elongation @ Breaking of weft yarn (Min) | % | 120 | 120 | 120 | 120 | 120 | 120 | 120 |

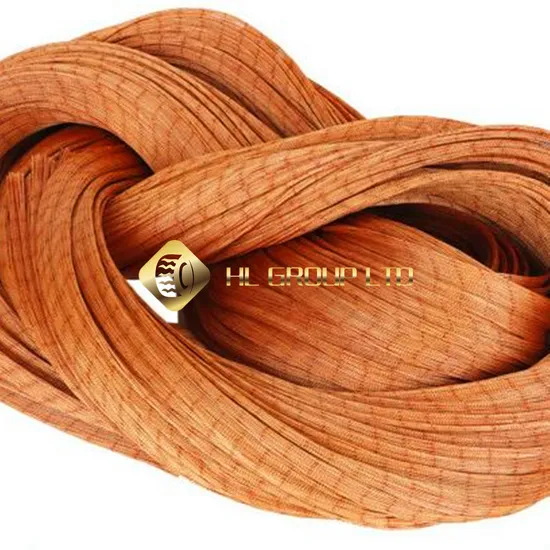

Product pictures:
Why choose us?
1.A professional international sales team, which is specialized in the framework materials for 16 years.
2.Well and high-quality control
3. Strong production capacity and testing capabilities
4.Various designs are available
5.Prompt delivery
6.FREE SAMPLE can be offered
>>
