19inch 8-Port Cat5e IP Kvm Switch Rack Mount Console Kvm Switch

Product Description

AZE Custom Ip 8 Port CAT5E IP KVM Switch Rack Mount Console KVM Switch -RMCON1908Ci

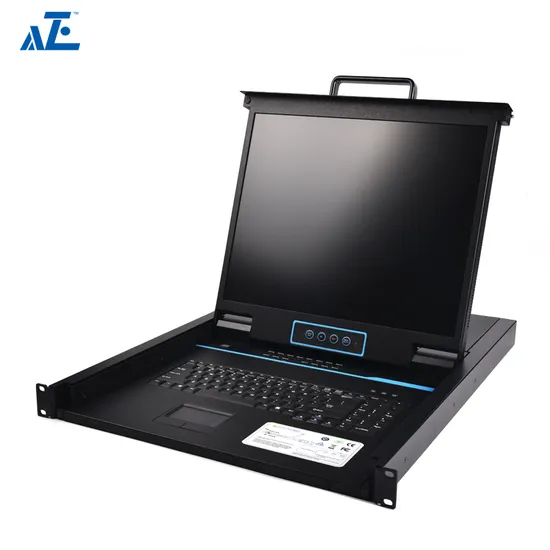

AZE's 17-inch/ 19-inch rack-mount KVM console provides complete keyboard, monitor and mouse control for a single server or multiple servers, connected through a separate KVM switch (sold separately). The 17in./19 in. console installs into 1U of rack space, offering a space-efficient solution for complete console control.
The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rack-mount VGA console features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free. Hassle-free system integration The rack console features a single-port KVM module, which enables you to connect it directly to a server. The module offers the flexibility you need to easily integrate it into your existing server infrastructure.
- Control an entire network in just 1U of rack space,includes keyboard, 17"/19" LCD screen and touch pad
- Connects to a PS/2 or USB server or KVM switch
- Supports video resolutions up to 1280*1024
- Rackmountable in 19-inch system rack (1U)
- Control your server or KVM switch from a centralized rack console
- Reduce your server room clutter with a 1U rack-mount design
- Large 17in/19in screen allows you to run multiple applications at one time / Single Port KVM / Rackmount LCD / Rack console / Rackmount KVM console / VGA KVM / Rack mount console / Single port KVM console / Rack mount KVM / Rackmount console / KVM switch VGA / LCD with KVM / 1U KVM / 1U KVM console / Rack KVM console / VGA Rackmount KVM Console
- Intuitive system integration with direct support for a single server or KVM switch

Technical Specifications
Model	RMCON1908Ci
General
KVM ports	8
Number of Monitors Supported	1
Max Connection	256
Display Size	19inch
Cables Included	Yes
Panel Type	Active Matrix TFT LCD
PC Interface	USB
PC Video Type	VGA
Rack-Mountable	Yes
U Height	1U
Users	2 (1 local, 1 remote)
IP Remote Access	Yes
Port Control	Button, Hotkeys, OSD, Mouse
Performance
Brightness	250cd/m²
Color Depth	16.7M colors
Contrast Ratio	1000:1
Max Resolution	1280 x 1024
Pixel Pitch Support	0.294 x 0.294mm
Connectors
Console Interface(s)	8 - RJ45 port
Host Connectors	1 - VGA
Network port	1 - RJ45
Keyboard/Mouse Interfaces	2 - USB Type-A (4 pin)
Serial Port	DB9 (Male)
Power
Input Current	1.5A
Input Voltage	100 - 240V AC
Power Consumption	23W
Environmental
Humidity	0-80% RH, non condensing
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Physical Characteristics
Color	Black
Product weight	13.4kg (29.5 lb)
Product Dimension(WxDxH)	448mmx605mmx42.5mm/17.6 inx23.8 inx1.7 in

Model	Description
RMCON1708Ci	1U 17" Rackmount LCD Console with Integrated 8 Port CAT5 IP KVM Switch
RMCON1716Ci	1U 17" Rackmount LCD Console with Integrated 16 Port CAT5 IP KVM Switch
RMCON1732Ci	1U 17" Rackmount LCD Console with Integrated 32 Port CAT5 IP KVM Switch
RMCON1908Ci	1U 19" Rackmount LCD Console with Integrated 8 Port CAT5 IP KVM Switch
RMCON1916Ci	1U 19" Rackmount LCD Console with Integrated 16 Port CAT5 IP KVM Switch
RMCON1932Ci	1U 19" Rackmount LCD Console with Integrated 32 Port CAT5 IP KVM Switch

Q1: Are you a manufacturer?
AZE: Yes, we are a experienced manufacturer- professional customer support team, experienced R & D team and effiency production lines.
Q2: Do you have any MOQ limit for rack kvm switch or kvm console ?
AZE: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
AZE: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize products based on requirements?
AZE: Yes, we can provide OEM & ODM services.
Q5: How long is the product warranty ?
AZE: We guarantee all our products 12 months warranty without artificial damage
Q6: How do you ship the goods and how long it will take?
AZE: We will use UPS, FedEx, DHL or air freight for sample order, it will arrived within 7-14 days.
For the bulk order with container sea shippment , it takes approx 30-35 days to arrived at the customer side.
Q7: Can i visit your factory?
AZE: Welcome to visit us, please talk with your account manager to arrange your schedule.
Q8: What is your payment terms?
AZE: 50% T/T in advance, 50% against B/L copy.

---
