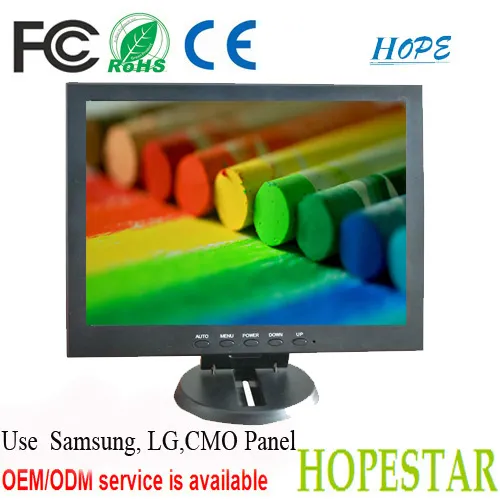

Industrial High Brightness 10 Inch LCD Monitor AV TV VGA HDMI

Product Description

Industrial high brightness 10 inch LCD Monitor AV TV VGA HDMI
Panel size: 10.4 inch TFT-LCD
Visual size: 210*160mm
Standard Resolution: 800*600 or 1024*768 Option
Number of Colors: 16.2M
Brightness: LCD panel: 300cd/m2
Response time: 8ms
View angle: Horizontal: 160° ; Vertical: 130°
Contrase ratio: 400: 1
Video input format: (analog) RGB
Connector: VGA (D-sub)
Frequency: 30~80KHz/60~75Hz
Power supply: External Power Supply: 100 to 240V AC (DC 12V)
Operation Environment: Workable Temperature: -10 to 60° C; Storage temperature: -20 to 70° C
Operate relative humidity: 20% to 80%; Storage relative humidity: 10% to 90%
Net weight: 2.5 Kgs/pcs
Gross weight: 3.0 Kgs/pcs
Power consumption: Max 30W
Setup (optional): 1) provide wall brackets for wall-mounting, VESA 75mm&100mm
2) provide base to support the monitor
OSD control: AUTO, +, POWER, -, MENU
Brightness, contrast ratio, auto adjustment, phase position, clock, Languages, function, Install, reset
Certificate: CE, ROHS
Warranty: 1 year, provide spare parts
Monitor size (not include base): 267*215*50mm
Each unit box size: 333*135*295mm
Package size: 6pcs in a carton, carton size: 650*450*390mm

Panel size	10.4 inch TFT-LCD
Visual size	210*160mm
Standard Resolution	800*600 or 1024*768 Option
Number of Colors	16.2M
Brightness	LCD panel:300cd/m 2
Response time	8ms
View angle	Horizontal:160°
	Vertical:130°
Contrase ratio	400:1
Video input format	(analog) RGB
Connector	VGA (D-sub)
Frequency	30~80KHz/60~75Hz
Power supply	External Power Supply:100 to 240V AC (DC 12V)
Operation Environment	Workable Temperature:-10 to 60°C Storage temperature:-20 to 70°C
	Operate relative humidity:20% to 80%; storage relative humidity:10% to 90%
Net weight	2.5 Kgs/pcs
Gross weight	3.0 Kgs/pcs
Power consumption	Max 30W
Setup (optional)	1) provide wall brackets for wall-mounting, VESA 75mm&100mm
	2) provide base to support the monitor
OSD control	AUTO,+,POWER,-,MENU
	brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function,Install,reset
Certificate	CE, ROHS
Warranty	1 year,provide spare parts
Monitor size (not include base)	267*215*50mm
Each unit box size	333*135*295mm
Package size	6pcs in a carton,carton size:650*450*390mm

---
