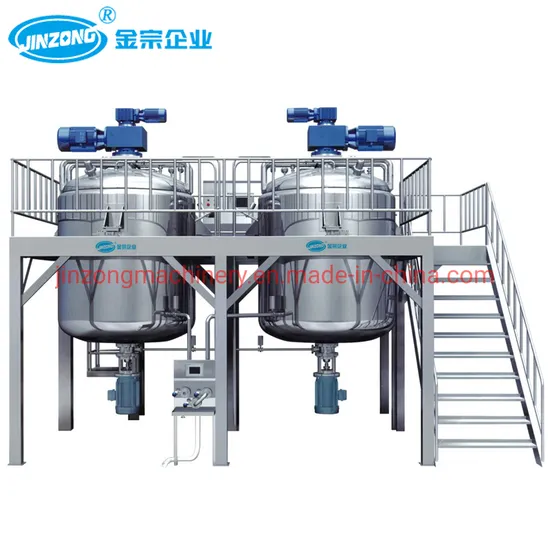

Guangzhou Machine Industry Homogenizer Washing Liquid Homogenizing Mixer Soap Shampoo Processing Mixing Tank High Shear Homogenizer Mixer High Pressure

Product Description

About JY Series Liquid Detergent Mixer
---To produce liquid washing products, like shampoo, liquid soap, bath shower, dish washing, hand washing, lubricating oil, etc.
---An all-round frame scraper mixing paddle, with single direction or double direction agitator, use frequency inveter to adjust the speed for making good products according to formular process.
---High speed shear homoginizer, 3000rpm strong mixing for solid and liguid materials and other insoluble materials, saving energy consumption and greatly shortening the production time.
---Can heat or cool the materials according to the process requirements, heating method can be selected according to customer requirement with steam heating or electric heating.
---The pot body is composed of three layers of stainless steel plate welding,tank and pipe for mirror polishing, full in line with GMP requirement.
---Use SUS304 or SUS316L Stainless Steel.
---Can choose to match vacuum pump, carry out vacuum bubble (customized).
Technical Parameter

	JY-500L
1	Total Capacity	620L
2	Working Capacity	500L
2	Inner Pot(Sanitary design )	SUS316L; thickness: 4mm; Internal polishing
3	Stirrer	SUS316L; frame scraping and stirring: 0~74r/min
4	Stirring Motor	4KW; frequency conversion speed regulation
5	Homogenizer	SUS316L; 0~2800r/min; Machinery Seal; internal and external circulation
6	Homogeneous Motor	11KW
7	Jacket	Stainless Steel; thickness:3mm
8	Outer Cover	SUS304; thickness:3mm
9	Lid	SUS316L; with CIP cleaning ball
10	Heating	Design pressure: 0.2mpa, working pressure: ≤0.1mpa
11	Insulation Cotton	expanded perlite
12	Vacuum System	2.2KW
13	Electric control box	Manual button control, digital temperature controller; 17.2KW
14	Inverter	4KW; 11KW

JY Series Mixer (Customized)

Model#	Volume of Main Pot (L)	Emulsifying Motor Power(KW)	Emulsifying Motor Speed(rpm)	Mixiong Motor Power(KW)	Mixing Motor Speed(rpm)	Dimensions
						(LxWxH)
500L	620	11	3000	4	0-74	2400x2200x3050
1000L	1300	15	3000	5.5	0-74	2600x2400x3200
2000L	2600	18.5	3000	7.5	0-74	2800x2600x4000
3000L	3800	22	3000	11	0-74	3000x2800x4200
5000L	6500	30	3000	15	0-64	3200x3500x4800

Note: In case of inconformity of the data in the table due to technical improvement or customization, the real object shall prevail.
Product Show
Why Choose Us---Solemn Commitment
1,We have a professional technical team to design the best process and program for you.
2,Insist on updating products regularly.
3,24-hour telephone feedback on the solution, and send someone to handle it online.
---Pre-sale service
Provide detailed information for customers to understand the equipment's performance and scope of application. The equipment plan proposed by the customer can also be customized according to the actual requirements of the customer
---Installation
After the equipment is shipped to the production site, we will provide tutorials or remote guidance for installation and commissioning; we can send engineers to the site to provide services according to the contract.
---Lifetime warranty
Lifelong tracking service, providing the latest technical support in real time. Machine parts and components are available all year round to meet customer's needs and reduce waiting time; for equipment that exceeds the one-year warranty, only the cost of the parts will be charged for the replacement of damaged parts. A diversified online after-sales service platform is provided, Customers can communicate with us via email, phone, whatsapp, WeChat, QQ, etc.
Welcome to Visit Our Factory
Shipment: Q&A:
1.Why your machine similar with other supplier?
We are manufacturer and had been in this industry for more than 20 years, with more than 6 years export experience. We design machines by ourselves with advanced technology. Appearance just a part of machine, service and quality is more important than it.
2.I'm new in our industry, but I'm planning to setup a factory, What can I do?
We can suggest customer the most suitable machine according to their formula, Raw material. Manufacturing- Installation- Training- Maintenance- Technical Support. We can introduce you supplier of raw material, bottles, labels etc. We could take you to our customer's factory to learn how they produce. We could customize machines according to your real need, We could send our engineer to your factory to install machines and train your worker of Operation and maintenance. Any more requests. Just let us know.
3.What kind of machines can you supply to customer?
We could offer various kinds of machines and whole production line.
(1)Cream, paste Products:In cosmetic industry: face cream,body cream, washing cream, vaseline etcIn food industry industry: sauce, ketchup, tomato paste, mayonnaise, mustard, chocolate etc;In chemical industry: welding paste,ink, paint,pigment etc.Production line for them: RO water treatment- vacuum emulsifying machine- storage tanks- filling machine-capping machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc.(2)Liquid products:Shampoo, lotion, liquid soap, detergent,juice,solution etc;Production line for them: RO water treatment - liquid wash mixer- - storage tanks- filling machine-capping machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc;(3)Make-up products:Lipstick, lip gloss, nail polish, marscara etcMachines for them: homogenizer mixer, colliod mill, lipstick filling machine, frezzing machine.4.What equipment can Jinzong manufacture?
(1) Vacuum homogenizer Emulsifying mixer
(2)Liquid washing homogenizing mixer
(3) Water treatment equipment (RO system)
(4)Perfume maker
(5)Anti-corrosion equipment and inkjet printer
(6)Liquid filling and screw-cap sealing machines
(7) storage Tanks
(8) Laboratory equipment
(9)Filter equipment
5.About Guangdong Jinzong Machinery Co., Ltd.
(1)A professional manufacturer producing daily-use chemicals, medicine machinery and pure water machinery equipment since 1999. We undertake equipment design, manufacture, installation, maintenance, technical improvement support, technical consultancy and other services.
(2)Our machines reach the GMP standards and CE certificate requirements. We attend many international trade fairs every year. By far, our products have been exported to over 50 countries all over the world and received much praise from them. Many customers become our long term business partners as well as good friends after the first cooperation.
(3)We create value for customers. We not only provide installation service, but also help customers design and select equipment according to existing sites. After-sales department specifically organizes clients to carry out debugging.
(4)The after-sales hotline is open the whole day and willing to provide consulting service for you. We value the good relationships with customers.

---
