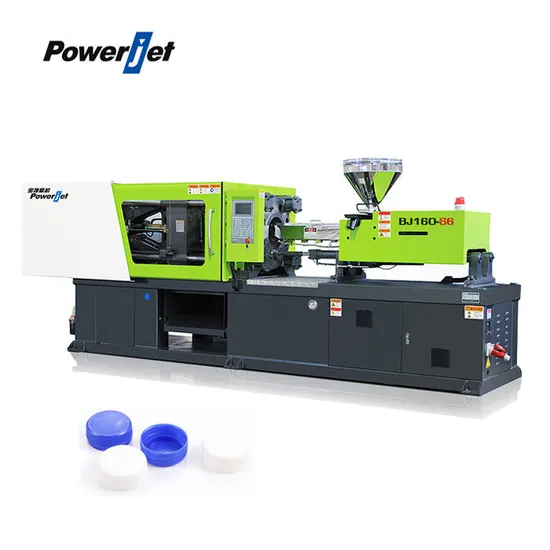

180ton 180t 180ton Horizontal Plastic Injection Molding Moulding Machine with Factory Price

Product Description

STANDARD INJECTION MOLDING MACHINE
With The New Driving System For Our Standard Injection Molding Machine, BJ Series Saving More Energy Than Before. The Motor Will Stop At The Stage Of Cooling For Saving Energy And Also Can Provide Higher Injection Accuracy And Speed.
Clamping Force - 50~1380(Ton)
Driving System - Hydraulic
Motor Type - Servo Or Variable
Applications - Food And Beverage Packaging, Necessities Products, Home Appliances, Electrical Components, Automotive Parts, etc.
FEATURES:
Servo Motor System shipment:
Comparing with the traditional hydraulic machine, S6 series can save more 50% of the power, energy saving is more obviously during pressure hold & cooling stage.
Clamping System:
Reliable and durable, Effective mold protection High repeatability of mold opening and closing.
Injection System:
Stable & precise, easy for adjustment & operation by efficient separating screw and high mixing screw increase the range of material used.
Control System:
User-friendly control system, powerful, fast, precise control, easy to operate, the program can meet various process needs.
Lubrication System:
Major friction parts are equipped with lubrication points. Electric lubricant pump controlled by computer sends automatically lubricating oil (grease) to lubrication points.
Product Description
Product Parameters

	DESCRIPTION	UNIT	BJ160-S6
CLAMPING UNIT	Clamping force	KN	1600
	Opening stroke	mm	440
	Max.datlight	mm	940
	Platen size	mm	705*705
	Space between bars	mm	460*460
	Max.mold height	mm	500
	Min.mold height	mm	160
	Ejector stroke	mm	140
	Ejector force	KN	49
INJECTION UNIT	Screw diameter	mm	46
	Screw L/D Ratio	L/D	20
	Injection Pressure	MPa	177
	Shot volume	cm3	340
	Screw stroke	mm	205
	Screw speed	rpm	210
POWER UNIT	Hydraulic system Pressure	MPa	17.5
	Pump motor power	KW	15/16
	Heater power	kW	9.8

Company Information
Packaging & Shipping
Our Services
FAQ
Q1: Are you a manufacturer or trading company?
A1: We are a factory for plastic machines. Over 23 Years Experience In Manufacturing Injection Molding Machine And Blow Molding Machine.
Q2: Delivery time?
A2: Normally Machine Delivery from the factory in 0-60 days after receiving the down payment. (During Chinese Public Holidays like National Day or Chinese New Year, the delivery time should be 10-30 days longer accordingly).
Q3: Where is your factory located?
A3: Our factory is located at No.5 Chuangxin Xi Road, Leping Town, Sanshui District, Foshan City, Guangdong Province, China. 1h drive from Guangzhou to our factory. Welcome to visit our factory.

---
