US$4,500.00-5,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Farming Policy
Paddy Field Machinery
Operation
Soil Preparation Machinery, Movable Operation
Arbor Configuration
Vertical Shaft
Transport Package
Naked Packing
Origin
Deyang City, Sichuan Province
Product Description
Product Description

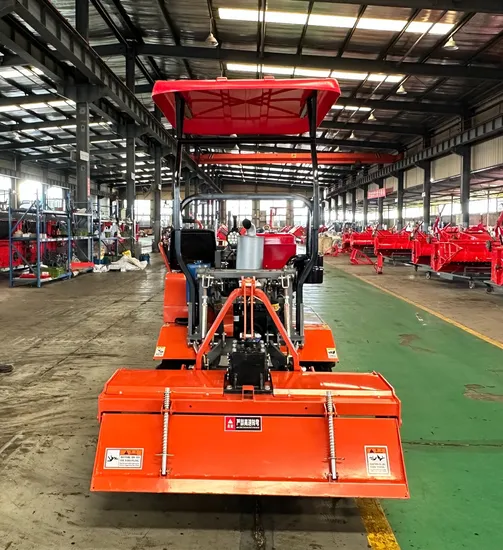

1GZL-125 CRAWLER TRACTOR/ROTARY CULTINATOR
Crawler walking★ HST one lever operating ★ hydraulic steering lift ★ Ground clearance 285mm,Guage 1000mm,Rubber track width 400★ Three-point Linkage,multi-functional match different farming implements to finish rotary tilling,ridging,furrowing works etc,★asy operation,low ground pressure, high efficiency.
------------------------------
SPECIFICATION
| Product Model | 1GZL-125 CRAWLER TRACTOR |
| Overall Dimension Length×Width×Heights(mm) | 2900×1320×1450 |
| Weight (kg) | 1050 |
| Productivity of Operating Hours(hm²/h) | 0.25~0.35 |
| Engine | Model | AM35NM |
| Rated Power(kw/hp) | 24KW/35HP |
| Engine Type | Water-Cooled,Single-Cylinder,Diesel Engine. |
| Rated Rotation Speed (r/min) | 2200 |
| Traveling System | Type of Gearbox | Mechanical Manual |
| Rubber Track(mm) | 350x90x38 |
| Gauge | 800 |
| Minimum Ground Clearance (mm) | 295 |
Hydraulic Hitch
System | Hydraulic Hitch Type | Semi-partition Hydraulic Hitch |
| Rear Mounted Implements Type | Three-point Linkage |
| Implements catogry | Categories 2 |
| PTO Rotating Speed (r/min) | 580 |
| Working Implement Rotary Tiller | Working Width(mm) | 1250 |
| Type of Knife | IT195 |
| Quantity of Knife | 28 |
| Driving Type | Side Gear Driving |
-------------------------------
Packaging & Shipping
-------------------------------
Working in Field:
>>
