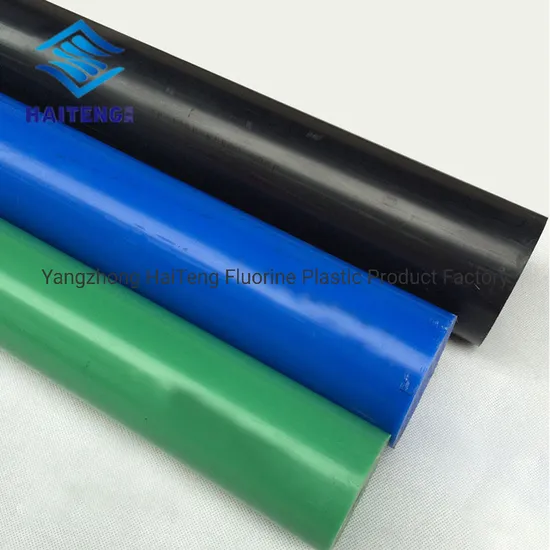

High Density Black Mc Nylon Rod Green Oil PA6 Rod Beige Ploymide Hollow Pipes

Product Description

High density black mc nylon rod green oil PA6 rod beige ploymide hollow pipes
Mc nylon means monomer casting nylon, is a kind of engineering plastics used in comprehensive industries, has been applied almost every industrial field. Nylon Rods specifications

Diameter (mm)	40-500mm
Length (mm)	500mm,1000mm, 2000mm

Name: MC Nylon Polyamide
Colors include: Natural white, black, blue, green, yellow and other colors
Othe Types: rod,tubes,sheets&machine parts
Characteristics
-Excellent wear resistance
-Good sliding properties
-High strength and toughness
-Self-lubricating
-Resistant to oil, weak acid and alkali
-Shock absorption
-Noise absorption
-Good electrical properties
Technical Data Sheet

PROPERTIES	Unit	Value
I.Physical Properties
Density	g/cm3	1.15~1.2
Water absorption 24hrs	%	2.5
II.Thermal Properties
Heat deflection temperature - HDT/A	ºC	95
Min. service temperature	ºC	-30
Max. service temperature	ºC	105
Thermal conductivity at 23 ºC	W/(K*m)	0.23
Coefficient of linear thermal expansion	10-4*K-1	0.8
Flammability Rating(6mm thickness)	-	HB
III.Mechanical Properties at 23ºC
Tensile strength at yield	MPa	80
Tensile strength at break	Mpa	-
Elongation at break	%	3
Modulus of elasticity after tensile test	MPa	3,300
Modulus of elasticity after flexural test	MPa	-
Hardness - Shore D		84
Charpy impact strength	kJ/m2	N. B.
Friction coefficient		0.36
IV.Electrical Properties at 23ºC
Dielectric constant at 1 MHz	106Hz	3.70
Dielectric loss factor at 1 MHz	106Hz	0.03
Volume resistively	Ohm (Ω) * cm	≥1015
Surface resisively	Ohm (Ω)	≥1013
Dielectric strength	kV/mm	50
NOTE: 1 g/cm3 = 1,000 kg/m3, 1 Mpa = 1 N/mm2, 1kV/mm = 1 MV/m

Images
FAQ Q1: How can I get a sample?
A1: Small size of sample are free, you only need pay for the shipping cost, or you can provide your UPS, DHL, Fedex, TNT courier to us. Customized size of sample should be charged.
Q2: What is your payment term?
A2: Small order ,we accept by T/T,western union, paypal, .Bulk quantity order ,50T/T in advance, 50% balance before shipment. Other terms negotiable.
Q3:Can we purchase a small part of plastic sheet / rod?
A3: Yes, if we have the size you require in stock.
Q4:Can you manufacture the plastics products as per drawing?
A4: Yes,we can.
Q5:What kinds of processing machine do you have?
A5: CNC machining center,CNC lathes,Milling,Laser engraving machine.

---
