CDL/CDLF Light Vertical Large Flow High Head Stainless Steel Multistage Centrifugal Water Pump

Product Description

CDL Seris Vertical Stainless Steel Multi-stage Centrifugal Pump
Stainless Steel Vertical Multistage Pump (CDL) , Sanitary Pump, Booster Pump, High Pressure Pump, Inline Pump, Jockey Pump, Fire Pump, Pipeline Pump
Overview
Non self-priming type vertical multistage pump, the motor is directly connected with the pump through shaft couplings, impeller guide vane is made of stamping stainless steel plate or precision casting stainless steel, smooth surface, hydraulic flow loss is small, and easily for cleaning, is very favorable for conveying pure medium. Pump inlet and outlet in a straight line(can be equipped with IEC or NEMA motor).
Operating conditions
Thin, clean, non-flammable and explosive and does not contain solid particles or fiber liquid.
Liquid temperature: room temperature type -15ºC to +70ºC
Hot water type -15ºC to + 120ºC
Ambient temperature: up to + 40ºC
Flow range: 0.4 ~ 50m³ / h
Medium PH range: PH3 ~ 11;
The highest altitude: ≤ 1000m;
Maximum working pressure: 2.5Mpa.
When the specific gravity and viscosity of the pump is greater than the water, the shaft power increases, so the motor must match the shaft power.
Pump
CDLF is a non-self-propelled vertical multi-stage centrifugal pump with standard motor. The motor shaft is connected with the pump shaft directly through the pump head coupling. The rod bolts connect the pressure cylinder and the overcurrent part between the pump head and the inlet and outlet , The pump inlet and outlet in the pump on the same line; the pump can be configured according to the need only protector, the pump dry turn, lack of phase, overload and other effective protection.
Motor
Motor is fully enclosed, air-cooled type 2 pole standard motors.
Protection grade: IP55
Insulation grade: F
Standard voltage: 1pH 220-230/240V
3pH 200-220/346-380V
3pH 220-240/380-415V
3pH 380-415V
Application
CDL is a versatile product that can deliver a variety of different media from tap water to industrial fluids to suit different temperatures, flow and pressure ranges.
1. Water supply: water plant filtration and transportation, water plant partition water, in charge of pressurization, fire control system.
2. Industrial pressurization: process water system, cleaning system, high pressure flushing system, fire protection system.
3. Industrial liquid transport: cooling and air conditioning systems, boiler feed water and condensation systems, machine tools, acid and alkali.
4. Water treatment: ultrafiltration system, reverse osmosis system, distillation system, separator, swimming pool.
Irrigation: farmland irrigation, drip irrigation.
CDL/CDLF Exploded Drawing
CDL/CDLF TECHNICAL DATAS

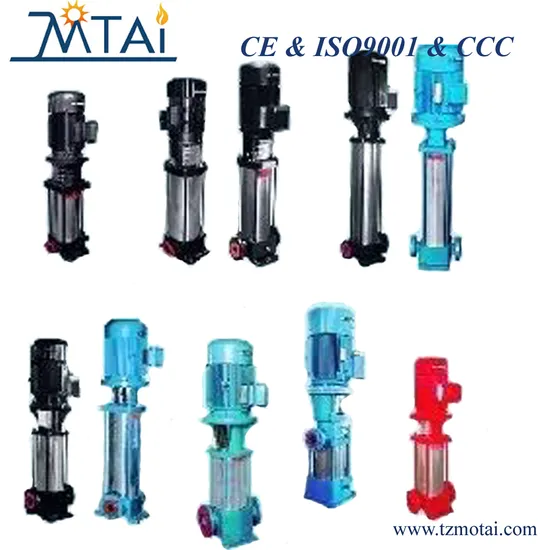

CDL/CDLF PUMP SHOW
ADVANTAGE:
Pre-sales service:
•We are a sales team, with all technical support from engineer team.
•We value every inquiry sent to us, ensure quick competitive offer within 24 hours.
•We cooperate with customer to design and develop the new products. Provide all necessary document.
After-sales service:
•We respect your feed back after receive the motors.
•We provide 1years warranty after receipt of motors..
•We promise all spare parts available in lifetime use.
•We loge your complain within 24 hours.

---
