50lbs Solid Liquid Separation Continuous Low Temperature Solvent Extraction Centrifuge Machine Hemp Oil Centrifuge Extractor

Product Description

Product Description

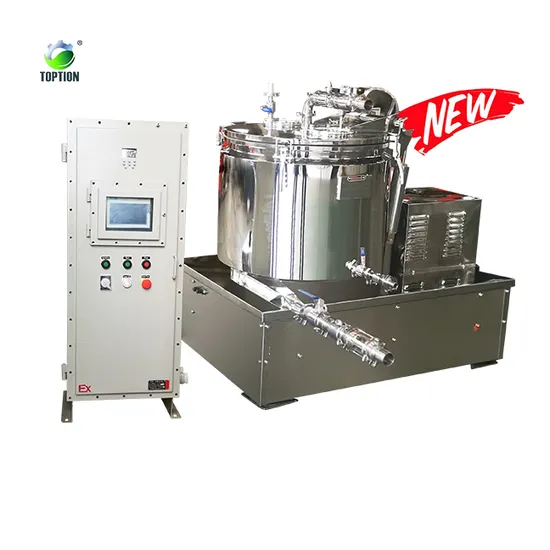

Main purpose of TOPTION brand centrifugal extraction equipment is to extract and other from dried hemp, and filter out the organic matter and plant debris that are insoluble in ethanol. Centrifuge is the most convenient ethanol extraction solution in extracting industrial hemp. The material is quickly extracted by full contact with ethanol and high speed rotation.
Product Parameters

Main parameters	TOP-C15	TOP-C30	TOP-C50	TOP-C110	TOP-C160	TOP-C220
Vessel diameter(inch)	12	18	24	32	40	47
Vessel volume(L)	18	48	110	251	393	565
Biomass/batch(lbs)	15	30	50	110	160	220
Alcohol solvent (L)	57	110	201	377	546	745
Standard Max speed(r/min)	3000	2000	1500	1000	900	700
Optional 1: speed	4000	3000	2000	1500	1200	1000
Main motor power (kw)	2.2/3	3/4	5.5/7.5	7.5/11	11.0/15	18.5/22
Vessel load-bearing (lbs)	25	50	100	320	450	540
Dimension (L*W*H)mm	850*610*900	980*680*1000	1350*990*1300	1700*1200*1500	1970*1400*1500	2200*1700*1500
Machine weight(kg)	≈300	≈500	≈800	≈1400	≈1900	≈2500

Our Advantages
1. Extraction equipment can meet different explosion-proof requirements. Integrated explosion-proof control cabinet, EX external split PLC operation screen optional.
2. Emergency stop button design for emergency shutdown protection.
3. Siemens PLC control system & operation screen. All low-voltage electrical appliances use imported
4. United states brand Honeywell Variable speed governor for stepless speed regulation of centrifuges, UL inverter optional.
5. CE certified electrical appliances, UL / EN standards available.
6. Spherical crown type flip cover, better strength and rigidity, effectively preventing the impact of flip cover deformation on the sealing performance of the whole machine, moreover, maintenance and cleaning are more convenient. The flip cover is made of plate as a whole, with high rigidity and strength, and smooth surface. Feeding tube, cleaning tube, sight glass, explosion-proof light, etc. are set on the flip cover, the layout is reasonable and beautiful, which is convenient for operation and production.
7. Equipped with explosion-proof lighting and observation glasses, it is more convenient to work. The observation mirror is equipped with a cleaning scraper device, which can be cleaned manually, easy to observe at running time. Stainless steel quick-opening handle, easy to open and lock.
