24PCS Tool Capacity Vertical Machining Center Excellent Metalsworking CNC Milling Machine

US$45,000.00-65,000.00 1 Set (MOQ)

Basic Info.

Model NO.
HD-855L Machining Centers
Application
Metal Parts
Process Usage
Metal-Forming CNC Machine Tools, Metal-Drilling CNC Machine Tools
Movement Method
Linear Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO9001:2015, ISO14001:2015
Condition
New
MOQ
1 Set
Worktable Dimension(mm)
1000X550 /1200X650 /1360X710 /1500X810 /1700X810
Spindle Taper
Bt140-160 / Bt150-155
Transmission Type
Belt
Tool Capacity(PCS)
24PCS
Tool Magazine
Disc Type
Cutting Feed Rate(mm/Min)
0-10000
Quality Control
100% Inspection Before Shipment
Shipment Way
by Vessal, Railway, Truck
Delivery Time
Within 15 Business Days If Stock Available
Transport Package
Standard Export Packaging
Specification
HD-855L, HD-1160L, HD-1270L, HD-1380L, HD-1580L
Trademark
HENGERDA
Origin
Fujian, China
HS Code
8457101000

Product Description

Products Photos
Product Description

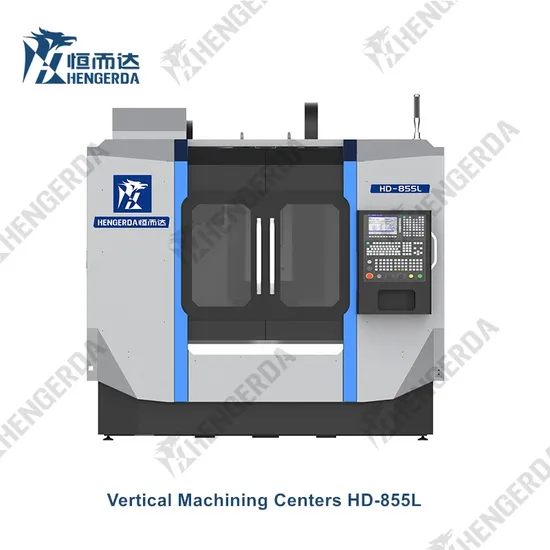

Hengerda Vertical Machining Center
High Performance & Stability
Machine bases with high rigidity, stability, and strength. The operation is easy, and each precision is reliable. They can process metals with various functions such as milling, drilling, boring, and tapping. Suitable for mass productions in workshops.
Ball Screws
The three axes are equipped with C3 grade ball screws in big diameters.
Product Parameters
Model Unit HD-855L HD-1160L HD-1270L HD-1380L HD-1580L
X/Y/Z Axis Travel mm 800/550/550 1100/650/750 1200/700/700 1300/800/800 1500/800/800
Distance from spindle nose to table top mm 110-660 95-845 75-775 85-885 85-885
Worktable Dimension mm 1000*550 1200*650 1360*710 1500*810 1700*810
Tool Capacity Pcs 24 24 24 24 24
CNC System - FANUC OI-MF PLUS(5)/ MITSUBISHI M80A/M80B
Spindle Motor Kw 7.5/11.0 11.0/15.0 15.0/18.0 15.0/18.0 18.5/22.0
X/Y/Z axis motor Kw 2.0/2.0/3.0 3.0/3.0/3.0 3.0/3.0/3.0 3.0/3.0/4.5 4.5/4.5/4.5
Please Note: all product technical information, parameters, specifications, dimensions, and design shown in this catalogue are suitable to change without prior notice. For more information, please contact Hengerda.
