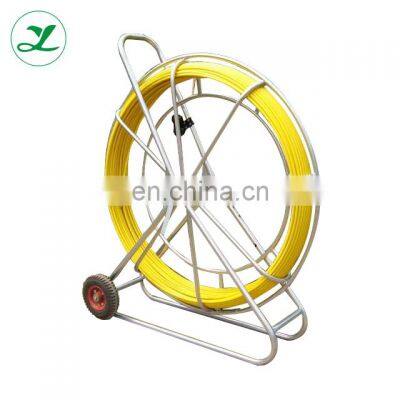

Hand Traceable Conduit cable snake duct rodder tool Wire Puller
Lanyu company supply you super quality fiberglass push pull snake conduit duct rodder with factory price which are made of frp duct rods.Good flexible and tracing make the duct rods have good effective to finish the snake and electric conduction in the electric cable tubes.
Name
| Duct Rodder, Snake rod, Push Pull Rod
|
FRP rod diameter
| φ4mm--φ18mm,
|
Length
| 30m--500m
|
Min Bend Radius
| 250mm,330mm
|
Glass Fiber Density
| 210kg/m, 245kg/m
|
Breaking tension
| 2400kg, 4200kg
|
Working Temperature
| -40°C--80°C
|
Frame size
| 1300mm x 450mm x 1330mm
1200mm x 420mm x 1220mm
980mm x 350mm x 1000mm
680mm x 240mm x 700mm
4200mm x 1800mm x 400mm
|
Information about Lanyu FRP Cable Push Duct Rodder
FRP rod information
1. Light weight, durable, good resistance to chemical and corrosion.
2. High tensile strength and bending properties to make it go through narrow pipes easily.
3. good temperatures adaptability, it will not soften in hot weather nor become brittle in cold weather, its usability will not be affected by temperature.
4. Rod jacket: developed composite materials, hard, smooth and wear-resistant.
5. meter marks are available
6. Rod colors: yellow, other colors are optional
Frame and reel information
1. Equipped with brake device, the rotating or stopping of the rod can be easily operated by hand.
2. Tilting type handle, convenient for pushing and pulling.
3. Guide roller and fixed ring: fix the rod end; protect the rod jacket from being scratched.
4. Frame color: yellow, other colors are available.
Detailed Images
Packing & Delivery
Related Products
FAQ & Contacts
Q: Are you trading company or manufacturer ?
A: We are manufacturer with our own factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge. And the freight cost will on the buyer's side.
Q: What is your terms of payment ?
A: Payment<=USD1000, 100% in advance. Payment>=USD1000, 30% T/T in advance ,balance before shipment.
If you have other questions, please feel free to contact us as below:
>>
