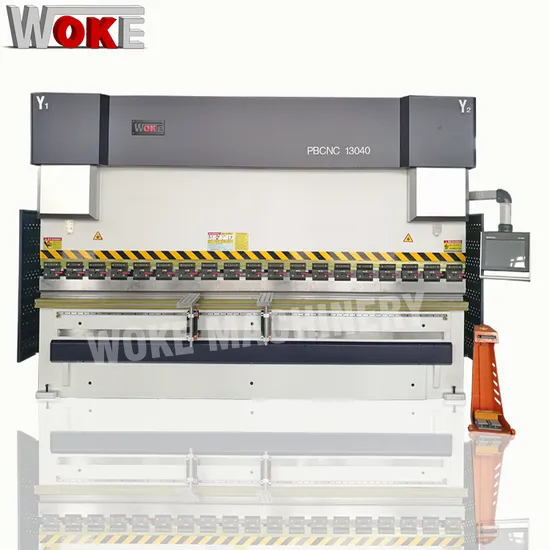

100t 3200mm 200ton Electric Hydraulic CNC Delem Press Brake Manufacturers

US$28,000.00-35,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
WE67K-100T/3200
Condition
New
Certification
ISO 9001:2008, CE
Automation
Automatic
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Press Brake
Control System
Delem, Cyb
Control Axis
Y1, Y2, X, R, Z1, Z2, V
Power Supply
Customized as You Request
Hydraulic System
Rexroth
Auto Crowning
Standard
Processing Material
Stainless, Mild Steel, Aluminum, So on
Machine Color
Customized
Core Electrics
Famous Brand in World
Voltage
220-450V
Key Word
CNC Press Brake Machine
Transport Package
Nude Packing, Steel Pallet
Specification
12CBM
Trademark
WOKE
Origin
Nantong, Jiangsu, China
HS Code
8462299000
Production Capacity
40PCS/Month

Product Description


FEATURES AT A GLANCE OF CNC PRESS BRAKE
APPLICATION OF CNC PRESS BRAKE
The CNC press brake uses the top tool and v dies (general or special) to bend the cold metal plate into workpieces with various geometric section shapes. It is a plate forming machine designed for cold-rolled sheet metal processing. It is widely used in plate bending processing in automobile, aircraft manufacturing, light industry, shipbuilding, container, elevator, railway vehicle and other industries. With the development of economy and society, users have higher and higher requirements for the automation of the bending machine, especially for the bending of some metal sheets or lengthened workpieces, which have high requirements for straightness and angle. These workpieces need NC bending machine for bending processing. CNC bending machine not only has high speed, high efficiency, but also high precision, and the scrap rate of bent workpieces is very low.

TECHNICAL PARAMETERS
Model Nominal pressure Worktable length Distance between columns Throat depth Opening Motor Dimension(LXWXH)
Ton mm mm mm mm Kw mm
40T/1500 40 1500 1180 250 325 4 1850×1300×2100
40T/2000 40 2000 1550 250 325 4 2250×1300×2100
40T/2500 40 2500 2050 250 325 4 2750×1300×2100
63T/2500 63 2500 2050 250 360 5.5 2750×1350×2230
63T/3200 63 3200 2600 250 360 5.5 3450×1350×2230
80T/2500 80 2500 2050 320 380 7.5 2750×1400×2350
80T/3200 80 3200 2600 320 380 7.5 3450×1400×2350
100T/2500 100 2500 2050 320 380 7.5 2750×1450×2380
100T/3200 100 3200 2600 320 380 7.5 3450×1450×2380
100T/4000 100 4000 3200 320 380 7.5 4250×1450×2380
125T/2500 125 2500 2050 320 380 7.5 2750×1450×2380
125T/3200 125 3200 2600 320 380 7.5 3450×1450×2380
125T/4000 125 4000 3200 320 380 7.5 4250×1450×2380
160T/2500 160 2500 2050 320 380 11 2750×1700×2600
160T/3200 160 3200 2600 320 450 11 3450×1700×2600
160T/4000 160 4000 3200 320 450 11 4250×1700×2600
200T/3200 200 3200 2600 320 470 15 3450×1850×2860
200T/4000 200 4000 3200 320 470 15 4250×1870×2950
250T/3200 250 3200 2600 400 530 18.5 3450×1920×3050
250T/4000 250 4000 3200 400 530 18.5 4250×1950×3150
300T/3200 300 3200 2600 400 560 22 3450×2200×3130
300T/4000 300 4000 3200 400 560 22 4250×2250×3320
300T/6000 300 6000 4700 400 560 22 6100×2250×4250
400T/3200 400 3200 2600 400 640 30 3200×2280×3250
400T/4000 400 4000 3200 400 640 30 4000×2300×3600
400T/6000 400 6000 4700 400 640 30 6000×2350×4650
500T/6000 500 6000 4700 400 640 37 6000×2450×4700
600T/6000 600 6000 4700 460 650 45 6000×2700×5710

FRODUCT CONFIGURATION
CNC PRESS BRAKE MACHINE DESIGN IS CUSTOMIZED
