Pharma Biological Healthcare Pilot Vacuum Freezing Lyophilizer Freeze Dryer with 150kgs Capacity

Product Description

Product Description

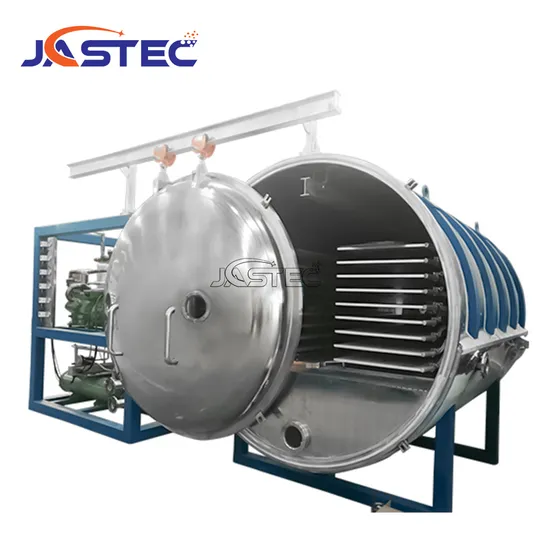

Industrial Freeze Dryer/ Lyophilizer
It is suitable for freeze-drying of various Chinese medicinal materials such as coptis chinensis, angelica, fritillaria, gastrodia elata, honeysuckle, salvia miltiorrhiza, rhizoma Corydalis, saffron, ginseng, American ginseng, scutellaria, licorice, radix adenophora, safflower, peony, cornwood, rehmannia, trollius lotus, Eumoides, Coix, yam, ginkgo, Galla, Polyporus, astragalus, golden buckwheat, cistanche deserticola, etc. Low-temperature freeze-drying technology is an ideal method for dewatering materials. It can keep the original active ingredients and nutritional ingredients of the material unchanged. After drying, not only the color, aroma, taste and shape of the article remain unchanged, but it can still be re-hydrated. Flavor active ingredients.
Application

Lyophilized herbal medicine	Cranberry freeze-dried
Yellow peach freeze-dried	Lyophilized fig
Lyophilized meat	Pet meat strips freeze-dried
Lyophilized purple cabbage and vegetables	Lyophilized okra vegetables

Product Specification

model	LG-5	LG-10	LG-20	LG-30	LG-50	LG-100	LG-200
dry area(m²)	5.1	10.2	21	30.3	50	100	200
vacuum degree(Pa)	10	10	10	10	10	10	10
cold trap temperature(ºC)	-55	-55	-55	-55	-55	-55	-55
water capture capacity(kg)	80	160	320	480	800	1600	3200
temperature of the baffle(ºC)	-40~+90	-40~+90	-40~+90	normal temperature ~+90
plate to be Spacersize(mm)	1650×620	1650×620	1750×930	1750×1240	2900×1200	5800×1200	12000×1200
Number of partitions	5+1	10+1	13+1	14+1	15+1	15+1	15+1
feed rate	50~75	100~150	200~300	500~750	500~750	1000~1500
Equipment size(mm)	2500×1800×2400	3200×1800×2400	4300×2500×2500	6000×2300×2700	1:1000×2750×3000 2:3000×1800×2400 3:1900×2000×2400	according to the customization
installed power(kw)	24	45	60	90	120	200	300

Our Advantages

Aerospace grade alloy separator material, double-sided radiant heating, radiation rate of more than 90%, good temperature uniformity.	Efficient mixed coolant medium, low freezing point and high boiling point, high heat exchange efficiency and long service life.

Pre-freezing and drying of the split structure are carried out simultaneously, improving lyophilization efficiency and shortening lyophilization time	Professional gas diversion design and control technology, strong water capture ability and high drying efficiency.

Flexible manual + automatic control method, manual is used to explore the process and automatic is used for batch production.
Precise sensor calibration function ensures the accuracy of process parameters for long-term use.
User levels and passwords can be set to decentralize operation management.
The powerful LYO-MEGA upper computer control system is optional, which can record and save operating data, curves and alarm records for up to ten years, improving product traceability; and at the same time facilitating observation, operation and fault diagnosis.
Non-standard customization can be carried out according to user needs.
Other Series Of Products
Company Profile
Jastec(Shanghai) Technology Co., Ltd is a professional supplier of food deep processing (include food additive) machinery. It integrates develop, sales, after-sale services as a whole, being a professional supplier for extraction equipment, drying equipment, mixing equipment, grinding equipment and turnkey project for food(include food additive)and agriculture industry etc.

---
