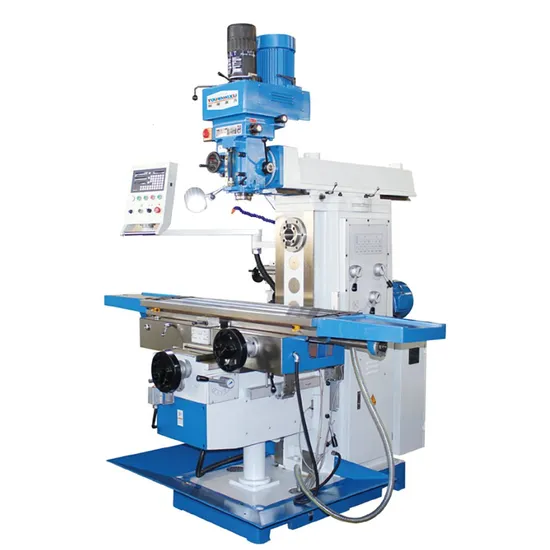

XL6336 Turret Milling Machine CNC Machine Is Optional

Product Description

Product Description
High speed milling head (7.5HP)
Pneumatic tool clamping is optional
DRO is optional accessories
Especial feature of this machine is the rapid feed and 8 feeds in all axis, driven by servomotor
High speed variable milling head on available
Machine body in heavy construction for vibration-free working
Rotary tab Ie can be ordered at speciaI request
Product Parameters

Specification	Unit	XL6336C	XL6336CL
Table size	mm	1325x360	1600x360
Table travel (X/Y/Z)	mm	1100/320/450	1300/320/450
Table feed. (X/Y/Z)	mm/mm	30-750/20-500/15-375
Table rapid speed (X/Y/Z)	mm/min	1200/800/600
Spindle taper		7: 24 IS050 (H)
		7: 24 IS040 (V)
Stroke of spindle quill	mm	5HP:127(V) or 7.5HP:140 (V)
Distance between spindle nose and table surface	mm	180-630
Distance between horizontal spindle center line and table surface	mm	0-450
Distance between horizontal spindle center ine and arm surface	mm	245
Spindle speed range	r.p.m	12 steps 60-1800(H)	16 steps 65-4660 (V)
T-slots(NO./width/pitch)	mm	3/18/80
Arm travel	mm	550
Main motor power	Kw	5.5(H) 3.7 or 5.5 (V)
Torque of X/Y/Z axis AC servo motor	N.m	15
Overall size	mm	2245 x 2100 x 2500	2520x2100x2500
Net weight	kg	2780	2850

Detailed Photos
High speed variable millinghead on available

Rotary table can be orderedat special request

Especial feature of this machine is therapid feed and 8 feeds in all axis,driven by servomotor.

---
