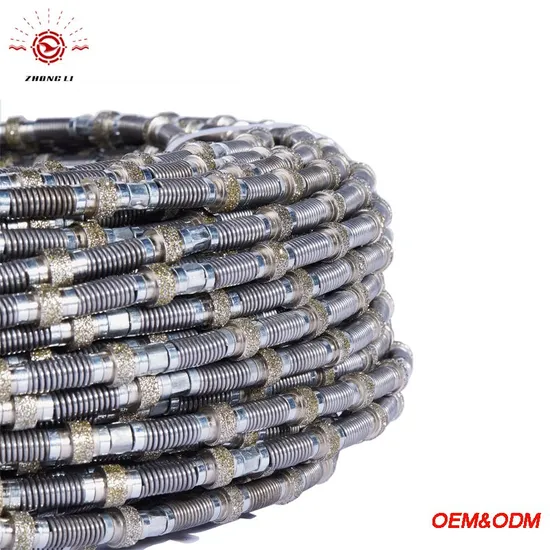

Diamond Wire Saw for Quarrying Granite Marble Sandstone

Product Description

Diamond wire saw for quarrying granite marble sandstone Product Features
Consistently fast cutting performance, very long lifetime and smooth running High level of safety For everyday use, cost-effective solution for standard applications For the most demanding applications and solutions for complex projects Most suitable for all type of Tyrolit and Hilti wire saw machine daily using. It have been test in Japan, England, Italy, Finland, Sweden, America etc construction projects. Product Specification

Granite Quarrying
Identification	Diameter	Reinforcement	Beads number	Cutting material	Line speed	Cutting speed	Wire life
WGM115	∅ 11.5 mm	Rubber	40/m	Hard granite	18-22m/s	2-4 m2/h	7-9 m2/m
				Middle hard granite	22-25m/s	4-8 m2/h	8-15 m2/m
WGM110	∅ 11.0 mm	Rubber+Spring		Soft granite	25-30m/s	8-12 m2/h	16-12 m2/m
WGM115	∅ 11.5 mm	Rubber	40/m	Hard sandstone	32-36m/s	5-10m2/h	10-20m2/m
WGM110	∅ 11.5 mm	Rubber+Spring		Soft sandstone	28-32m/s	1-5m2/h	15-30m2/m
Marble Quarrying
WMM115 WMM115 WMM115	∅ 11.5 mm	Rubber	40/m	Hard marble	20-30m/s	4-9m2/h	15-25m2/m
	∅ 11.0 mm		37/m	Middle hard marble	20-35m/s	8-15m2/h	15-35m2/m
	∅ 10.5 mm		33/m	Soft marble	25-35m/s	10-20m2/h	20-50m2/m
	∅ 11.0 mm ∅ 10.5 mm	Rubber+Spring Rubber+Spring	30/m 28/m	Hard marble	20-30m/s	4-9m2/h	15-25m2/m
				Middle hard marble	20-35m/s	8-15m2/h	15-35m2/m
				Soft marble	25-35m/s	10-20m2/h	20-50m2/m
Block squaring
WGS110 WGS105	∅ 11.0 mm ∅ 10.5 mm	Rubber Plastic	40/m 37/m	Hard granite	20-30m/s	6-10m2/h	7-10m2/m
				Middle hard granite	20-30m/s	8-15m2/h	8-15m2/m
				Soft granite	20-30m/s	12-20m2/h	10-20m2/m
WMS110 WMS105	∅ 11.0 mm ∅ 10.5 mm	Rubber Plastic	40/m 37/m	Hard marble	30-40m/s	10-20m2/h	15-30m2/m
				Middle hard marble	30-40m/s	15-25m2/h	20-40m2/m
				soft marble	30-40m/s	20-30m2/h	30-50m2/m
Profiling
WGP088 WGP084	∅ 8.8 mm ∅ 8.4 mm	Rubber Plastic	40/m 37/m	Hard granite	25-30m/s	7-10m2/h	7-10m2/m
				Middle hard granite	25-30m/s	8-15m2/h	10-15m2/m
				Soft granite	25-30m/s	10-20m2/h	15-20m2/m
WMP088 WMP084	∅ 8.8 mm ∅ 8.4 mm	Plastic	37/m 33/m	Hard marble	30-40m/s	10-20m2/h	20-30m2/m
				Middle hard marble	30-40m/s	15-25m2/h	25-35m2/m
				Soft marble	30-40m/s	20-30m2/h	30-40m2/m
Reinforced Concrete
WCR115	∅ 11.5 mm	Rubber+Spring	40/m	Normally reinforced	22-25m/s	0.8-3m2/h	1-4m2/m
WCR110	∅ 11.0 mm			Strengthening reinforced	20-25m/s	0.5-2m2/h	0.5-2m2/m
WCR105	∅ 10.5 mm			Steels or metal structure	15-25m/s	0.03-0.1m2/h	0.2-0.5m2/m

Product Pictures
Product Application
Diamond wire saw main production process
Packing
Shipping
Our Services
100% inspection before shipping
Great OEM and ODM service
Offer Cost-effective price
Quick lead time: 7-10 workdays

---
