8Mpixel~10Mpixel 16/25/35/50mm 2/3" Machine Vision FA Camera Lenses 3.45μm F2.8 TV Distortion -0.037% AI 3D Positioning Industrial Recognition 4K C Mount Optics

Product Details

Product Description

Product Description
Really Suggested Lens if target price is low, but don't want worse quality or low quality lens, this serial is the right one to you.
Whatsapp: 008618949838193
Wechat/Skype: soyocctv
Email: sales@soyocctv.com

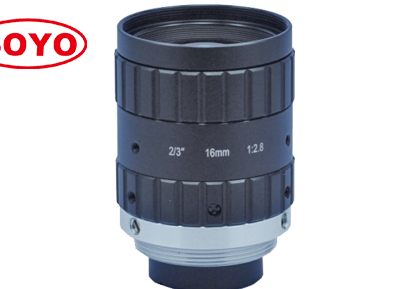

16mm 2/3" 8Megapixel Machine Vision FA Camera Lenses 3.45μm F2.8 TV Distortion -0.41% AI 3D Positioning Industrial Recognition 4K C Mount Optics
High resolution : 8megapixel can used at 10Megapixel camera
Large format: 2/3" size covering 2/3", 1/1.8", 1/2" camera
Low distortion : -0.41% low distortion
Compact size : Very compact small size match all area applications.
Application : Positioning, Inspection for medical, life science, SMT, AOI.

Model		SMV1628G-8M
Format		2/3” (Φ11mm)
Resolution		8.0 Megapixel
Focal Length		16mm
Aperture (Close)		F2.8 Manual iris
Field of View (°)	2/3"	152*121*91mm | 38*31*23°
	1/2”	110*88*66mm | 28*23*17°
	1/3”	83*66*50mm | 21*17*13°
M.O.D		20mm
Distortion TV		-0.41%
Filter Size		M28.5*0.5mm
Magnification		-0.073X @200mm WD
T.T.L		52.3mm
B.F.L		8.97mm
CRA		5.8°
Dimension		Φ31*38.5mm
Mount		C
Weight		67g
Marks		-10℃～+50℃

---
