Automatic Slitter Folder/ Zig-Zag Slitting Fan Folding Machine for Self-Adhesive Thermal Paper, RFID Film, Label Sticker Roll, Ticket, Card, Boarding Pass

Product Description

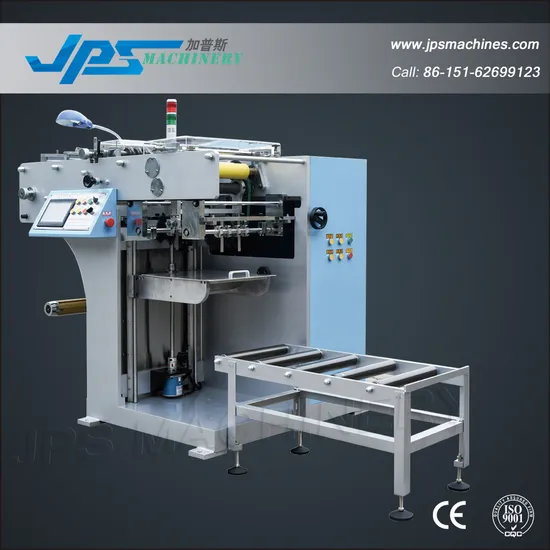

JPS-320ZD 320mm Automatic Slitter Folder/ Zig-Zag Slitting Fan Folding Machine for Self-Adhesive Thermal Paper, RFID film, Label Sticker Roll, Ticket, Card, Boarding Passs With Lifting Device
Technical Parameter:

Model	JPS-320ZD
Speed	80m/min
Max Web Width	320mm
Folding Length	300mm
Max Unwinding diameter	500mm
Voltage	220V
Power	3.5KW
Machine Size	1360x1200x1300mm (LxWxH)
Weight	600KG

Application:
Sizing folding all kinds of Express waybill, supermarket sticker , commercial label bill, blank label paper and preprinted label paper ...

Features:
1. This machine is professional folding for all kinds of self-adhesive label: blank label and printed label
2. Automatic tension control system for unwinding
3. High precision folding effective
4. Perforation available
5. Automatic web guiding system
6. Touch screen operating system , running, stopping, folding parameters set
7. Folded label rotation mode, the label can be folded various size
8. Electric Servo CPU integrated circuit, more stable operation
9. This machine can be equipped with printing machine and die cutting machine

After-service:
1. Warranty for machines is 12 months
2. A promptly reply within 24 hours
3. Free usage training before delivering machines in factory
JPS-320ZD Machine Version

JPS-320ZD Machine Configuration:
JPS Factory Show:
JPS-320ZD Machine Application:
JPS Main Product List
Customer Show

---
