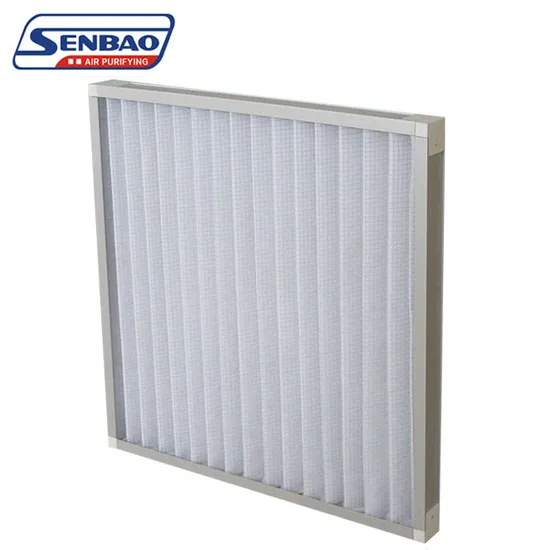

HVAC Clean Room G3 G4 Pleated Panel Pre Filter

Product Description

HVAC Clean Room G3 G4 Pleated Panel Pre Filter Product Description Product Feature

Low Resistance
Large airflow
Surface mesh used by rust treatment process
good appearance and durable Large media area
Great sealing property
Large dust holding capacity
100% Factory inspection
Long life-span.

Application
Used as first stage filters in air system
1. Clean rooms
2. Food processing industry.
3. Pharmaceutical Processing
4. Aerospace Engineering
5. Genetic & Biological research
6. Biohazard Atmosphere
7. Laminar Flow Workstations
8. Bio Safe Hoods(Biological Safety Cabinets)
9. Hospital Operating Theaters & Intensive care units
10.Atomic Research
11.Electronic, medicament,food.

Detailed Photos

Product Parameters Material and Performance

Frame	Aluminum/GI/Cardboard
Filter Material	Polyester Synthetic Fiber
Protect Nets	Aluminum/GI.
Max.TEMP	80ºC
Max.HUM	80%RH
Frame Thickness	25mm/46mm/96mm

Specification and technical parameters

Model No.	Outsize L*W*H (mm)	Rated air flow (m³/h)	Initial resistance (pa)	Efficiency
C-G3	290*595*25	500	40-45Pa	G3/G4
C-G3	290*595*46	1500
C-G3	595*595*46	3000
C-G3	595*495*46	2500
C-G3	595*295*46	1500
C-G3	495*495*46	2000
C-G3	595*595*96	5000
special size can be according to customer special requirement

Company Profile
Dongguan Senbao Purifying Equipment Co., Ltd. was established in 2003, factory covers an area of 10500 square meters.
We are mainly engaged in the design, production and sales of air filters and other purification equipment. Our products are mainly used for: food, beverages, optoelectronics, circuit boards, monitors, chemicals, biopharmaceuticals, hospitals, nuclear power, environmental engineering, precision machinery and other industries. Senbao has advanced air filters production line and testing equipment we have a large number of well-know customers , Our products also exported to North America, South America, Southeast Asia, the Middle East, Europe, Africa etc.

>FAQ
Can the product be customized? Yes, the products and packaging can be customized.
How to pay? Our company accepts various payment methods, such as T/T, L/C, etc.
What is the lead time?
7-10 days after payment; 12-15 days for bulk goods
Have you arranged the shipment? 1. Yes, we can arrange the delivery according to the customer's requirements
2. Bulk goods by air or sea, full container; Airport/port reception;
How about after-sales service? Our company is responsible for the products provided during their useful life.

---
