Basic Info.
Model NO.

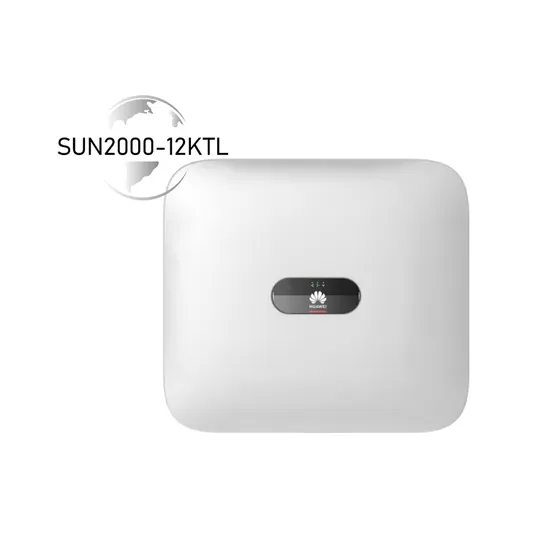

HUAWEI SUN2000-12KTL
Nature of Source Flow
Active Inverter
Certification
SAA, CE, ROHS, ISO9001, CCC, TUV
Circuit Topologies
Push-pull Type
Nature of Wave String
Sine Wave Inverter
Specification
525 x 470 x 160 mm
Production Capacity
2000PCS/Year
Product Description
Product Description
Product Parameters
| Technical Specification | SUN2000-5KTL-M1 | SUN2000-6KTL-M1 | SUN2000-8KTL-M1 | SUN2000-10KTL-M1 | SUN2000-12KTL-M1 |
| Max. Efficiency | 98.4% | 98.6% | 98.6% | 98.6% | 98.6% |
| European Efficiency | 97.5% | 97.% | 98.0% | 98.1% | 98.2% |
| Recommended max. PV power 1 | 7500wp | 9000wp | 12000wp | 15000wp | 18000wp |
| Max. input voltage 2 | 1100V |
| Start voltage | 200V |
| Max. input current per MPPT | 11A |
| Maximum short circuit current | 15A |
| Operating voltage range 3 | 140V~980V |
| Rated input voltage | 600V |
| Maximum input number | 2 |
| Max. input number per MPP tracker | 2 |
| Compatible Battery | HUAWEI Smart String ESS 5kwh - 30kwh |
| Operating voltage range | 600 V ~ 980 V |
| Max operating current | 16A |
| Max charge Power | 10,000 W |
| Max discharge Power | 5500W | 6600W | 8800W | 10000W | 10000W |
| Grid connection | Three-phase |
| Maximum apparent power | 5,500VA | 6,600VA | 8,800VA | 11,000VA | 12,000VA |
| Rated output | 5000W | 6000W | 8000W | 10000W | 12000W |
| Maximum output current | 8.5A | 10.1A | 13.5A | 16.9A | 18.4A |
| Rated output voltage | 220Vac/380Vac,230vAC/400Vac,3W/N+PE |
| Output voltage frequency | 50HZ/60HZ |
| Max. total harmonic distortion | <3% |
| Maximum apparent power | 3,300 VA |
| Rated output voltage | 220 V / 230 V |
| Maximum output current | 15A |
| Weight (with mounting plate) | 17Kg |
| Dimensions (W x H x D) | 525 x 470 x 166 mm |
| Protection Degree | IP65 |
Project Case
Packaging & Shipping
Related Products
Certificate
FAQ
Q1: How to choose the right inverter?
A1: Tell us your demand, then our sales will recommend a suitable inverter for you.
Q2: What's the difference between Mono and Poly panel?
A2: Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used to make polycrystalline silicon is simpler and costs less. The amount of waste silicon is less compared to monocrystalline.
Q3: How about the delivery time?
A3: Delivery time 7 days for sample; 15 days for bulk order.
Q4: What is the warranty for solar panels?
A4: Generally warranty for solar panel is 10 years, also we offer 25 years linear output power warranty.
Q5: How can I get better service from you?
A5: We have professional engineer team can give you best support based on your requirement. If you have any problems during using,
we offer 24 hours online service and will solve your problem within 1 hour.
>>
