PLC/Ipc Controlling CNC Mandrel Pipe Bending Machine with Servo Motor Driven (GM-SB-28CNC-3A-1S)

Product Description

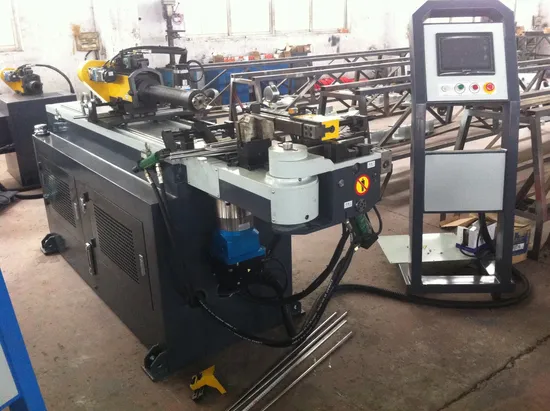

GM-SB-28CNC Full-Auto Numerical Control Single-Head Bending Machine
Model:SB28×3A×1S Machine Characteristics SB-CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order. Y, B, C three coordinatesofmotions under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions, such as components bending springback compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection.Pipe rotating (B axis) and pipe feeding(Y axis) and pipe bending(C axis) are all driven by servomotor. Main Technical Parameter

Name	Unit	Parameter
Max. Bending Capacity	mm	¢28*2
Bending Radius Range	mm	20-180
Max. Bending Angle	°	190°
Bending Speed	°/sec	180
Turning Speed	°/sec	280
Feeding Speed	mm/sec	1000
Bending Precision	°	±0.10
Turning Precision	°	±0.10
Feeding Precision	mm	±0.10
Turning Servomotor Power	kW	0.4
Feeding Servomotor Power	kW	0.4
Through effective distance	mm	3200
L*W*H (Packaging Dimension)	mm	2900*800*1500
Weight	T	1.0

Configuration of Hydraulic and Electronic Control System

Name	Manufacturer
Hydraulic Motor	Siemens Beide or Suzhou Runmali
Hydraulic Pump	Wuxi Tuoli
Hydraulic Valve	Japan Yuken(Imported)
Oil way Board	Suzhou Boguan
Cylinder	Shanghai Qifan
Oil tube	Suzhou Kejia
Touch screen	Taiwan Weinview(Imported)
PLC	Japan Mitsubishi(Imported)
Servo Motor	Japan Mitsubishi(Imported)
Angle controller	Japan Nemicon(Imported)
Switch power	Wenzhou Changxing
Contactor	German SCHNEIDER(Imported)

FAQ 1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer.We are focusing on metal pipe/tube processing machinery.
2. Q: How to choose the pipe/tube bending machines?
A: You have to inform us following details:
- Max. outside diameter
- Wall thickness range
- Bending radius (CLR)
- The pipe material
- The drawings if possible
3. Q: What certificate do you have?
A: We have both ISO and CE certificate.
4. Q: Where is your factory located?
A: Our factory is located in Zhangjiagang City, Jiangsu Province, about 2 hours to Shanghai by car. You can fly to
Shanghai Hongqiao or Pudong airport directly.Or we are about 1 hour to wuxi city by car. You can take fast train to
Wuxi railway station.
